Jockey pump options for maintaining pressure in fire pump systems and supporting stable system readiness.
Fire Pump Spare Parts Saudi Arabia from Falcon Power include diesel engines, jockey pumps, electric motors, fire pump controllers, pressure gauges, valves, tanks, batteries, filters, and pump accessories for fire pump rooms and firefighting system requirements.
Main spare parts and technical product groups used in fire pump systems and pump room applications.

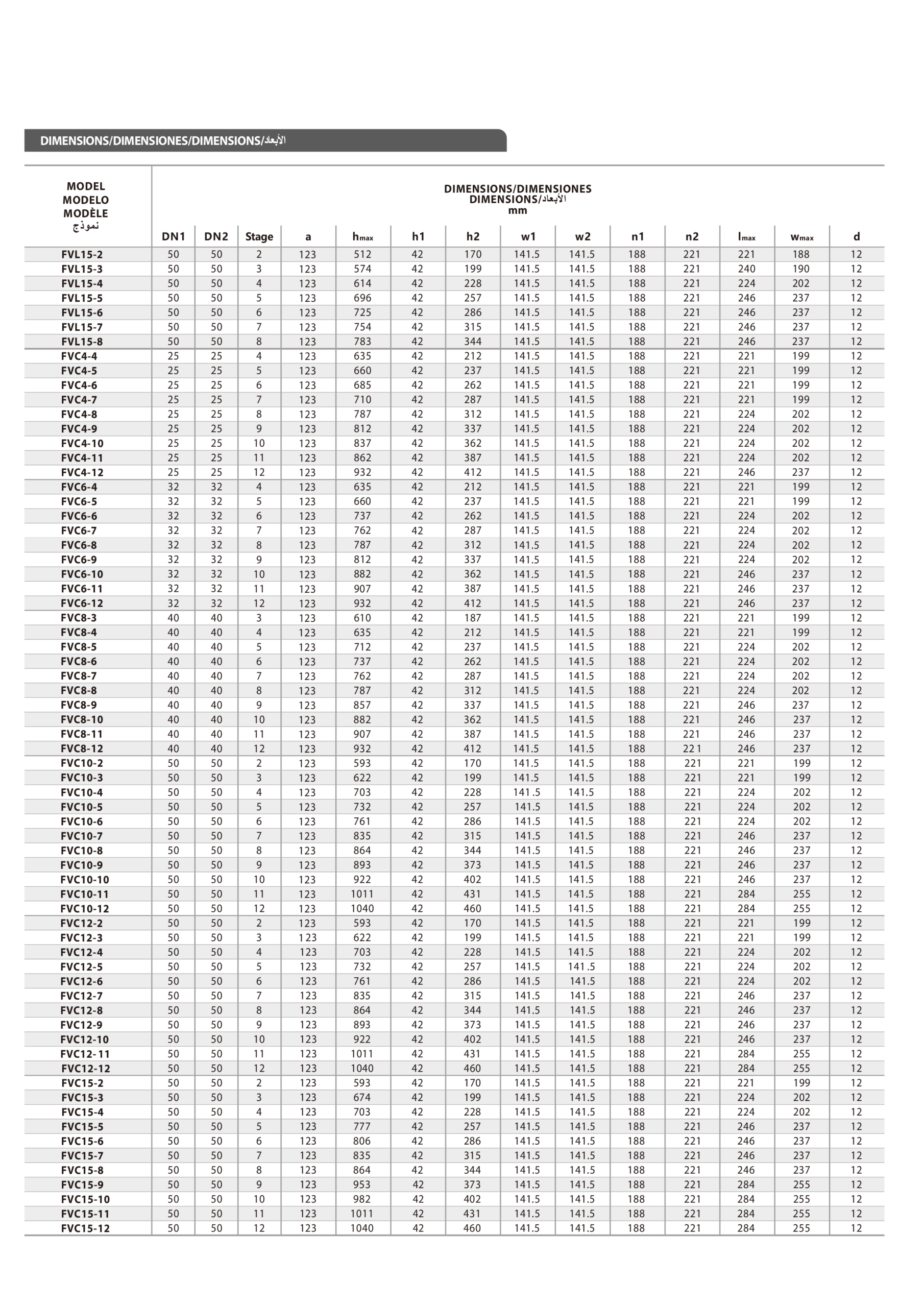

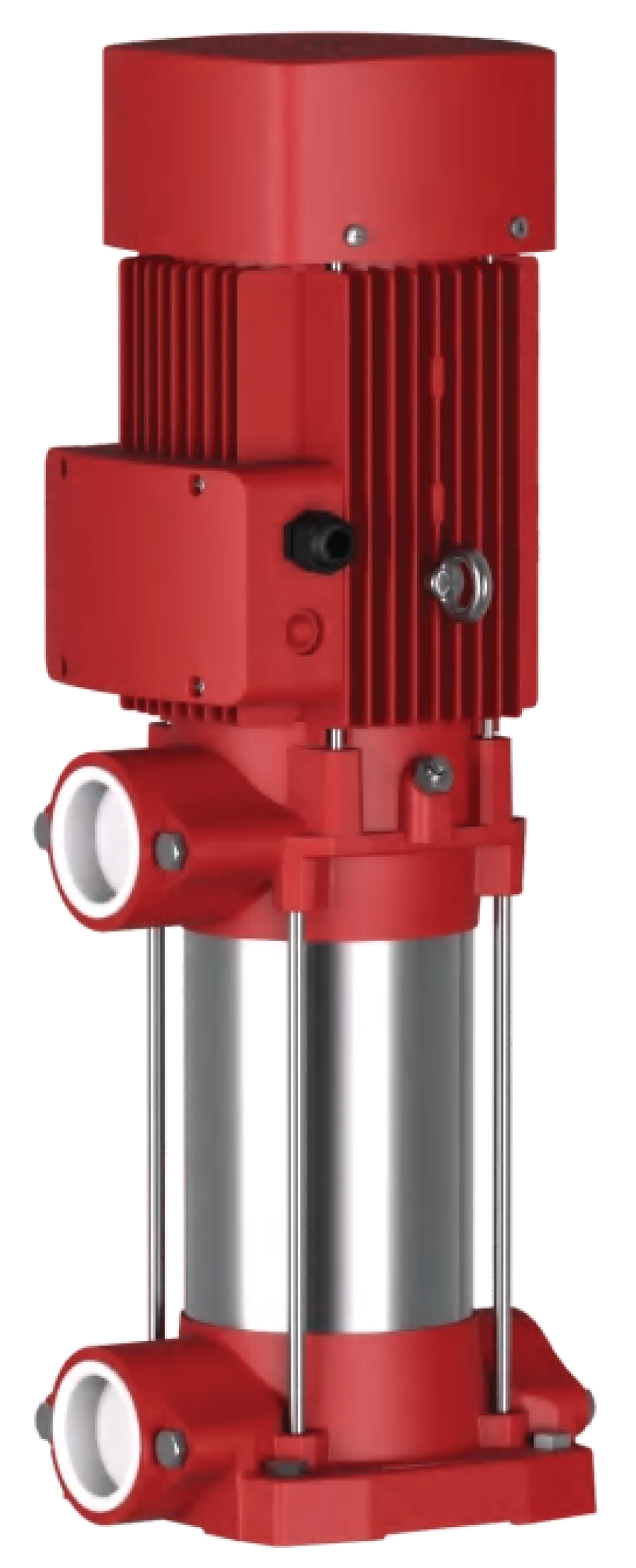

Jockey pump options for maintaining pressure in fire pump systems and supporting stable system readiness.

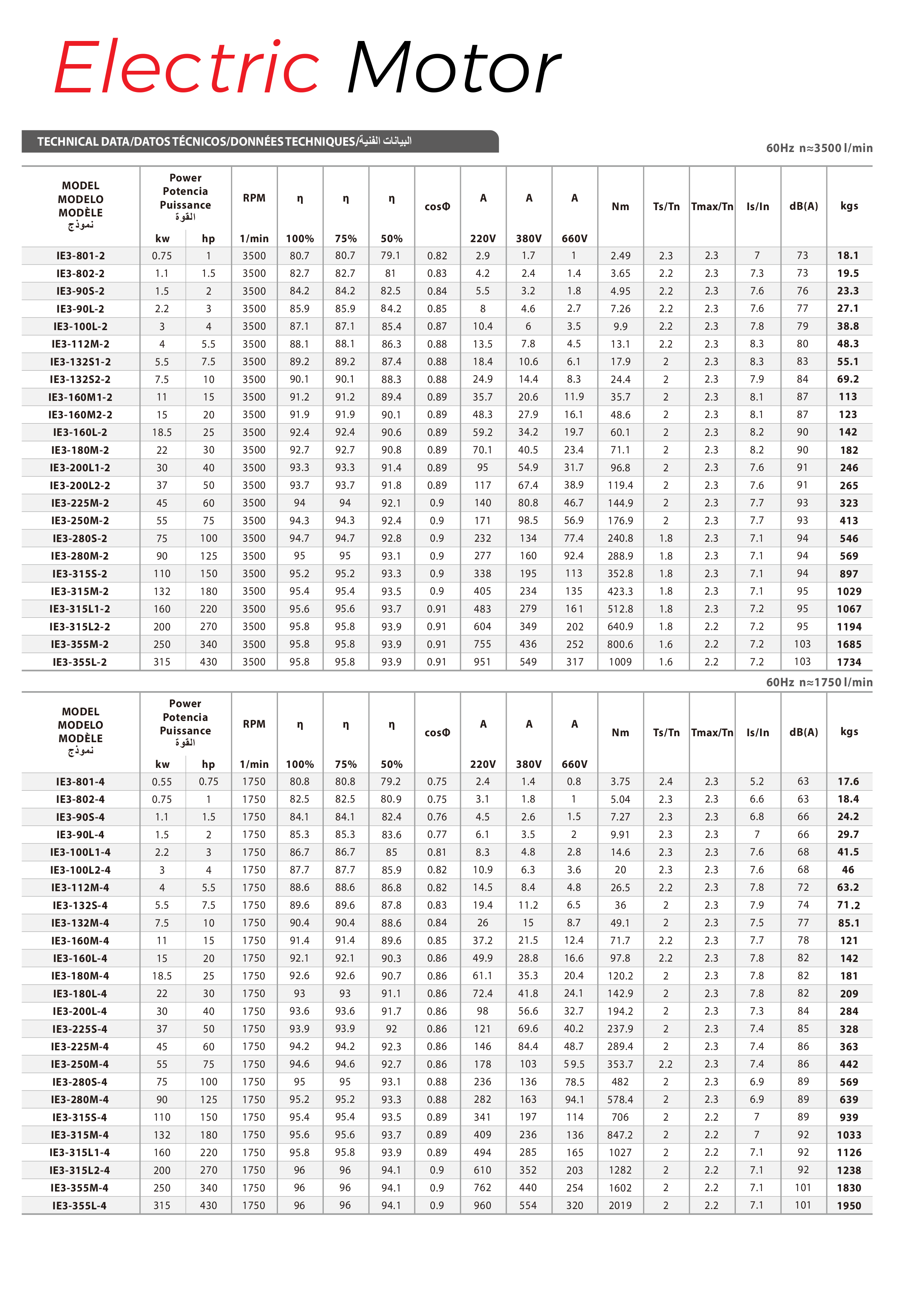

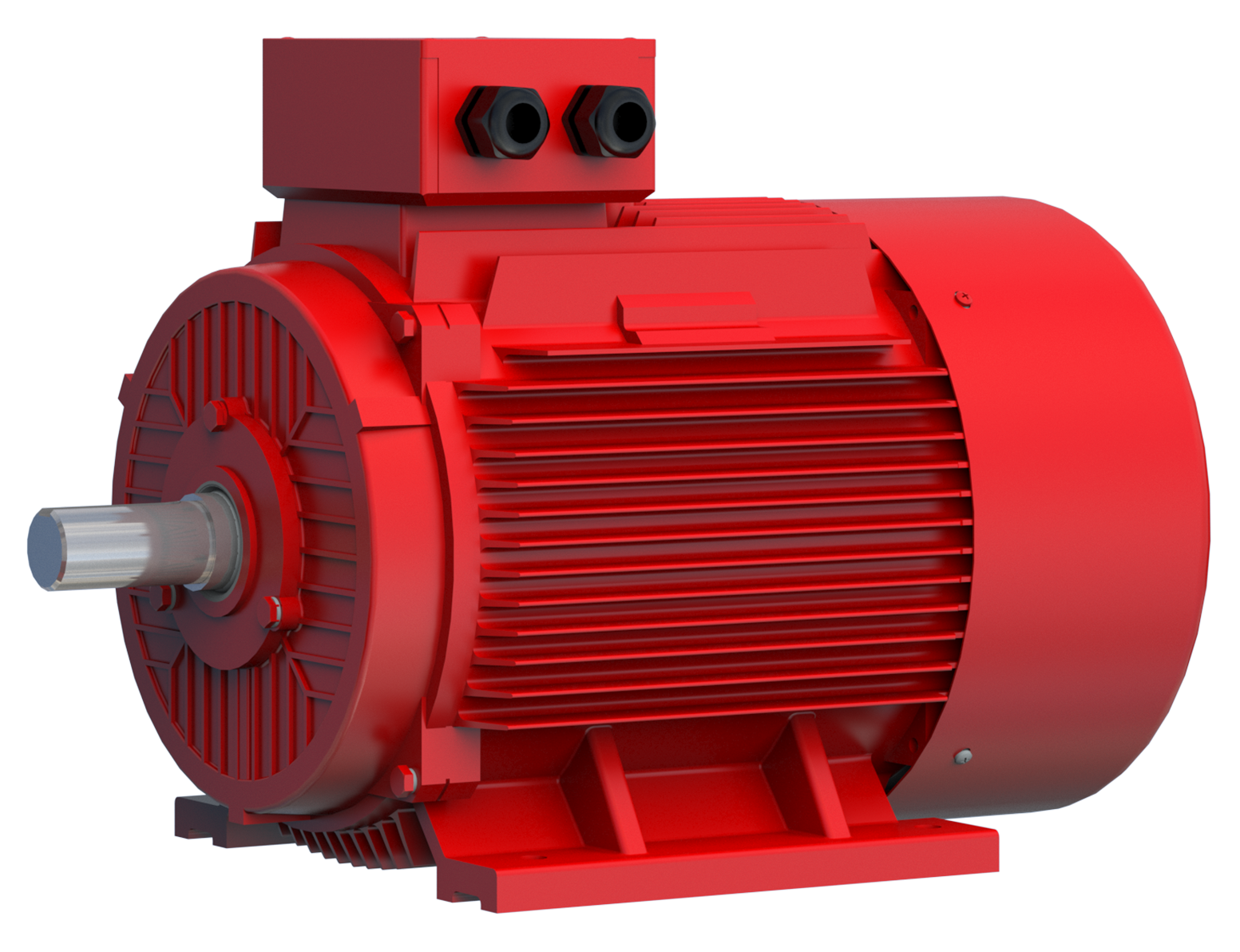

Electric motor options for fire pump systems, selected according to power, voltage, speed, and project requirements.

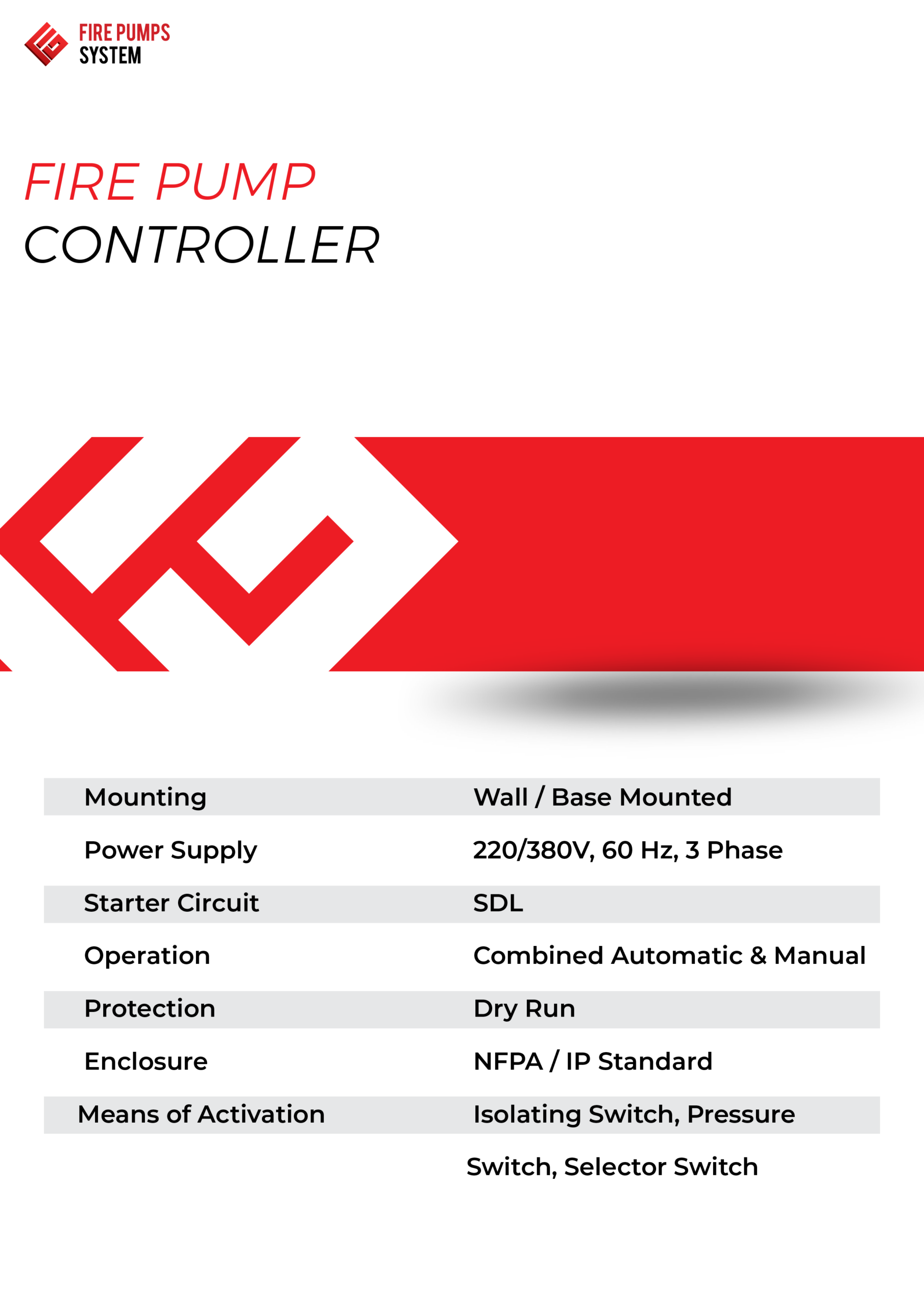

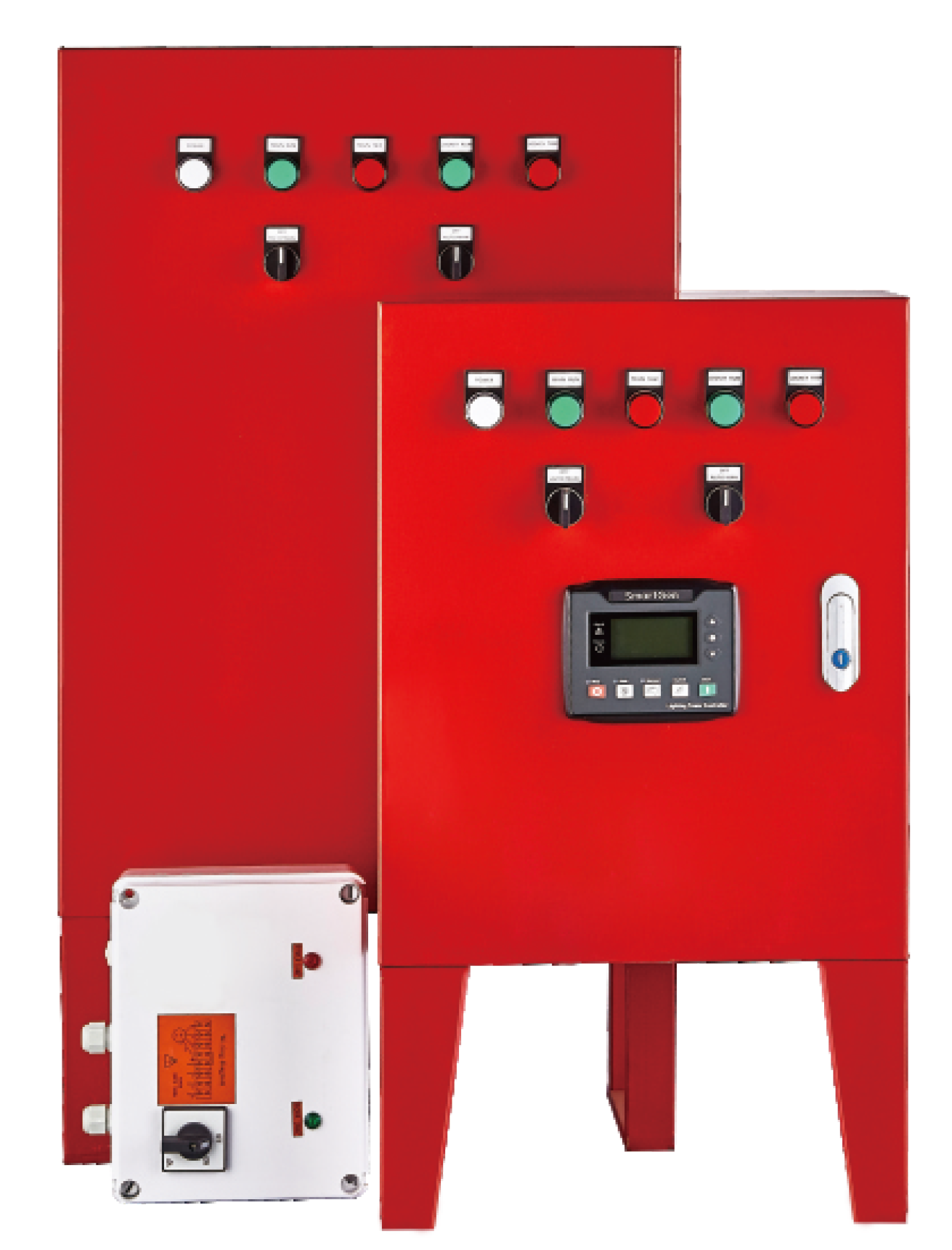

Fire pump controller panels for pump operation, monitoring, protection, and automatic/manual control requirements.

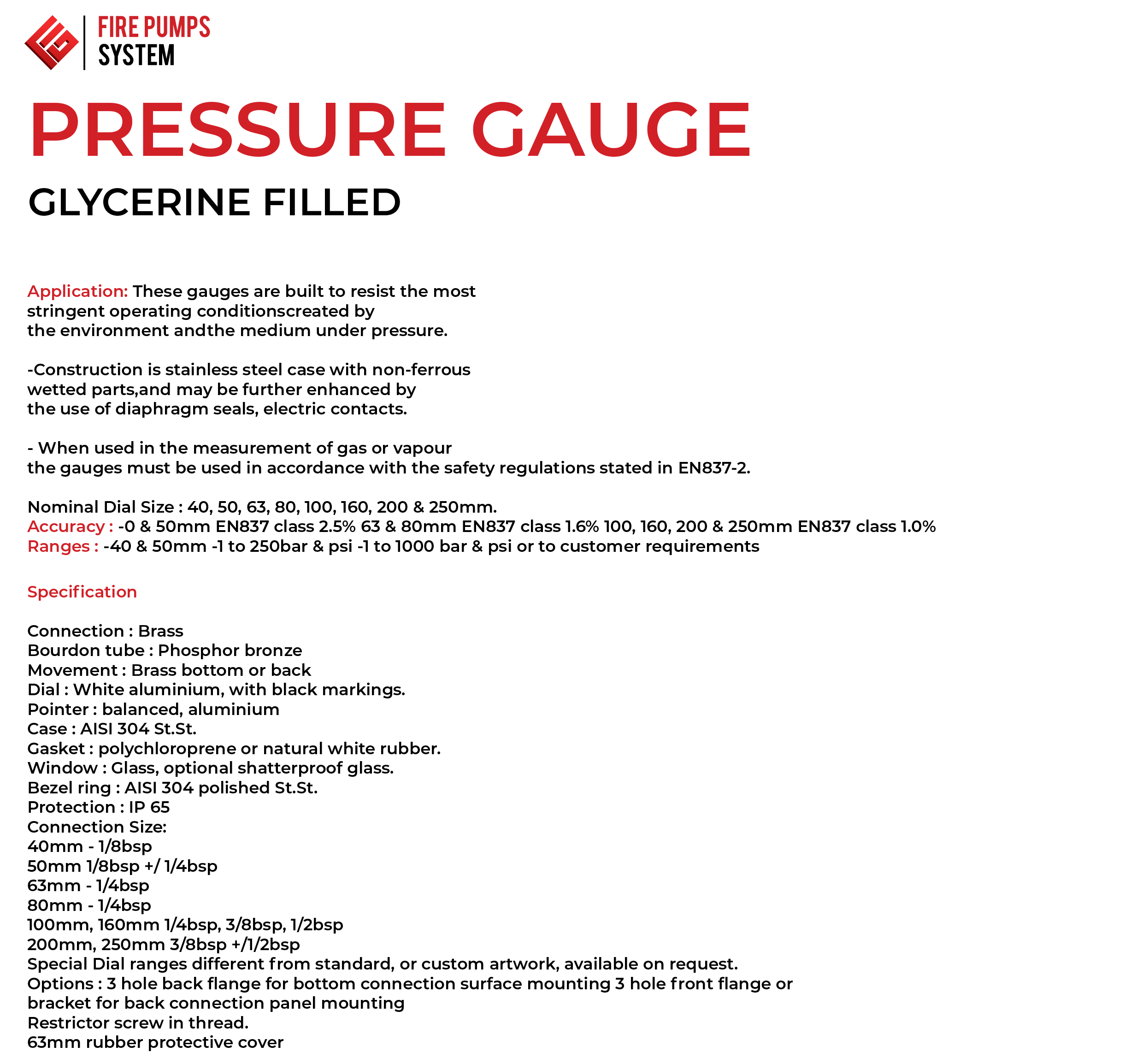

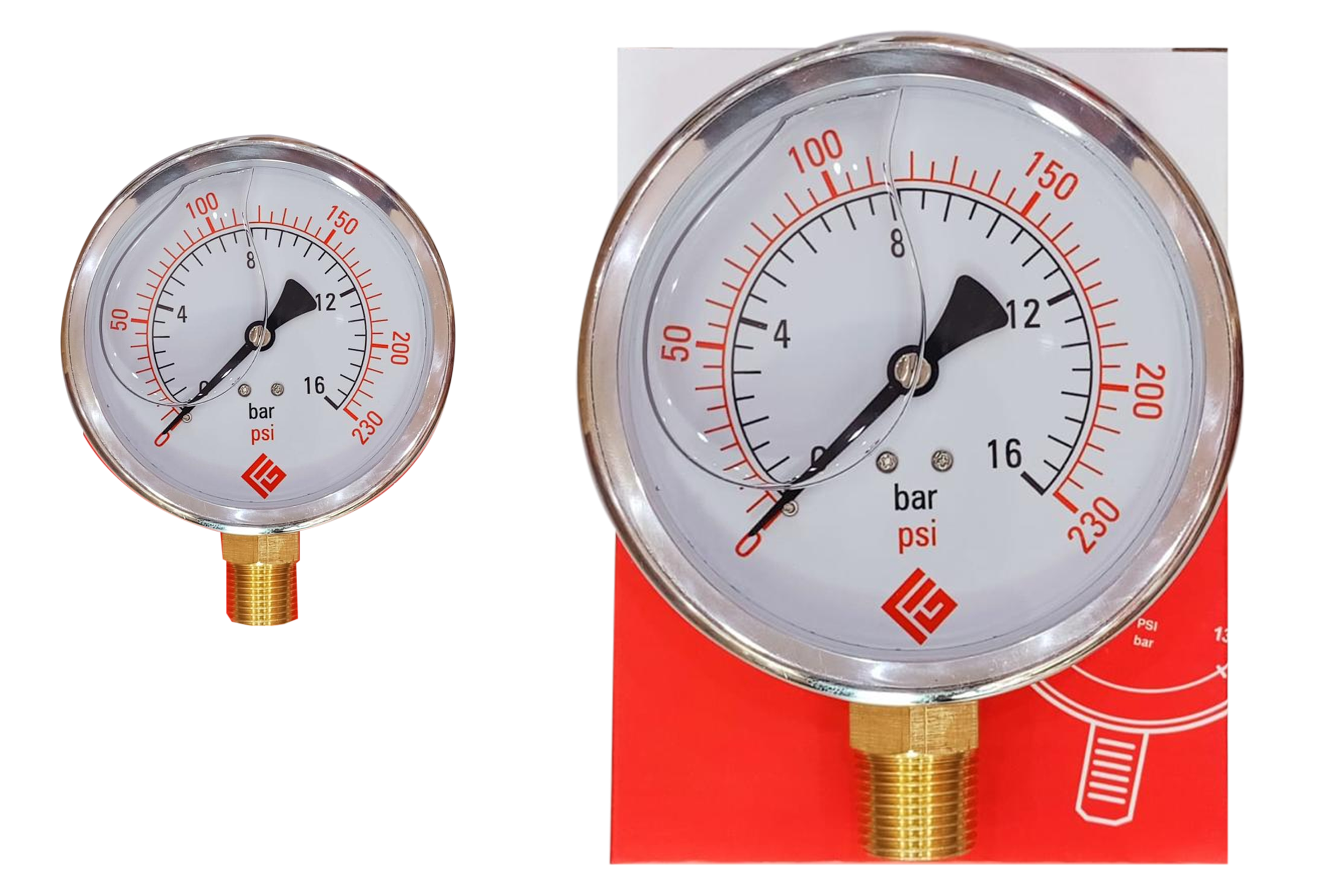

Glycerine-filled pressure gauge for fire pump system monitoring and pressure reading applications.
FG diesel engine models for fire pump applications, covering multiple power ranges and engine configurations.
Choose the required diesel engine model and open the PNG datasheet for full technical details.
Additional pump accessories and mechanical components available for fire pump rooms and system maintenance requirements.

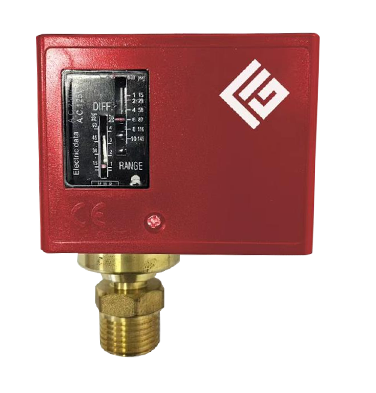

Pressure switch used for pump control and system pressure monitoring applications.

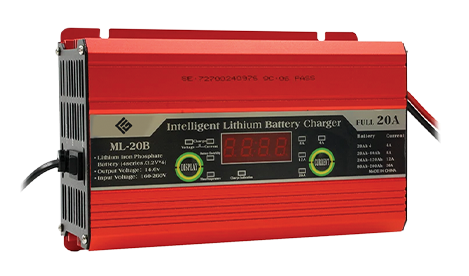

Battery charger for supporting electrical power requirements in pump system accessories.

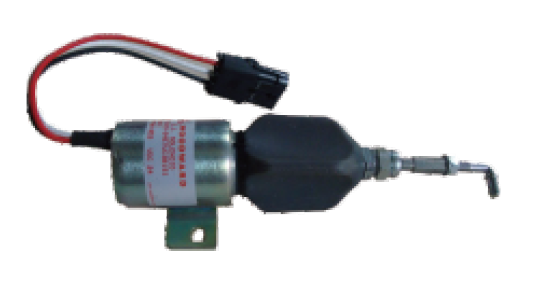

Solenoid component for selected control and actuation requirements.

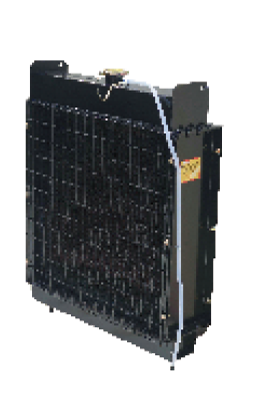

Radiator component for engine cooling and fire pump system support.

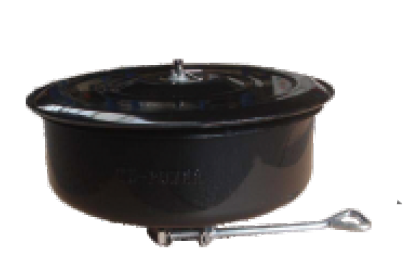

Air filter accessory for selected engine and pump system applications.

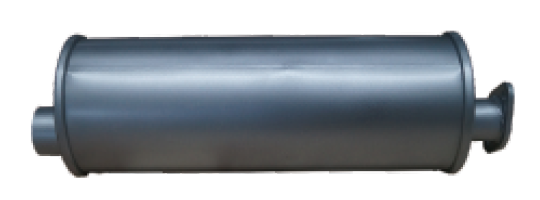

Muffler component for diesel engine and pump room system accessories.

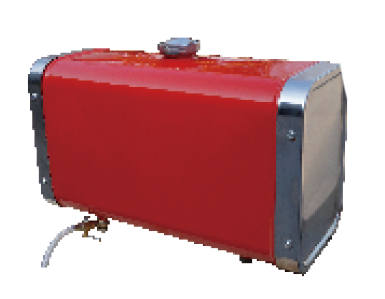

Fuel tank accessory for diesel-driven fire pump system requirements.

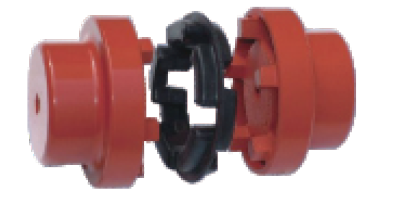

Coupling component for mechanical connection between selected pump system parts.

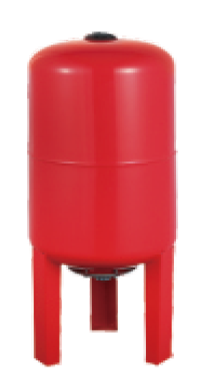

Pressure tank accessory used in selected pressure and pump system requirements.

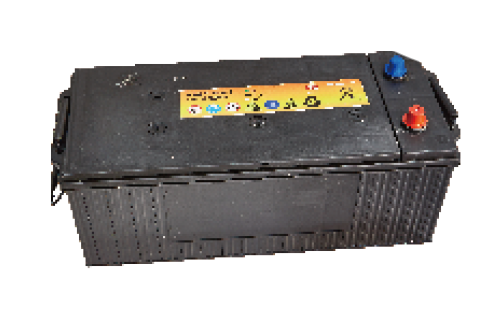

Battery accessory for selected fire pump system and engine support requirements.

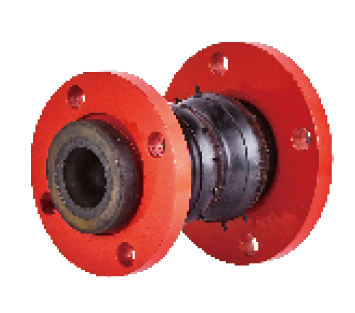

Flexible joint for vibration isolation and connection support in pump system piping.

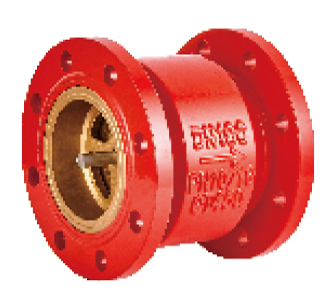

Check valve for flow direction control and backflow prevention in pump systems.

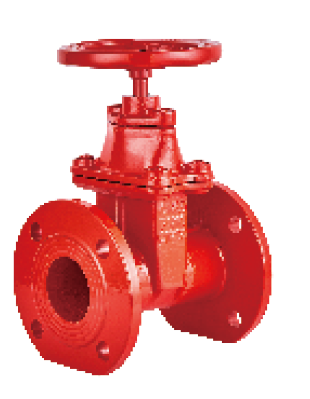

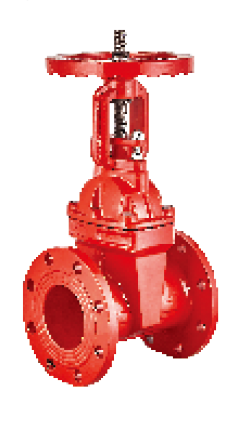

Gate valve for isolation and system control in fire pump and piping applications.
Brass check valve for selected fire pump and water system accessory requirements.

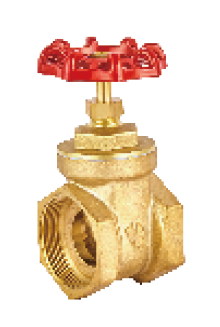

Brass gate valve for selected pump accessory and water control applications.
A simple comparison table for the main diesel engine models before checking the full PNG datasheet.
| Model | Cylinders | Aspiration | Displacement | Power KW/HP | Rated Speed | Net Mass | Datasheet |
|---|---|---|---|---|---|---|---|

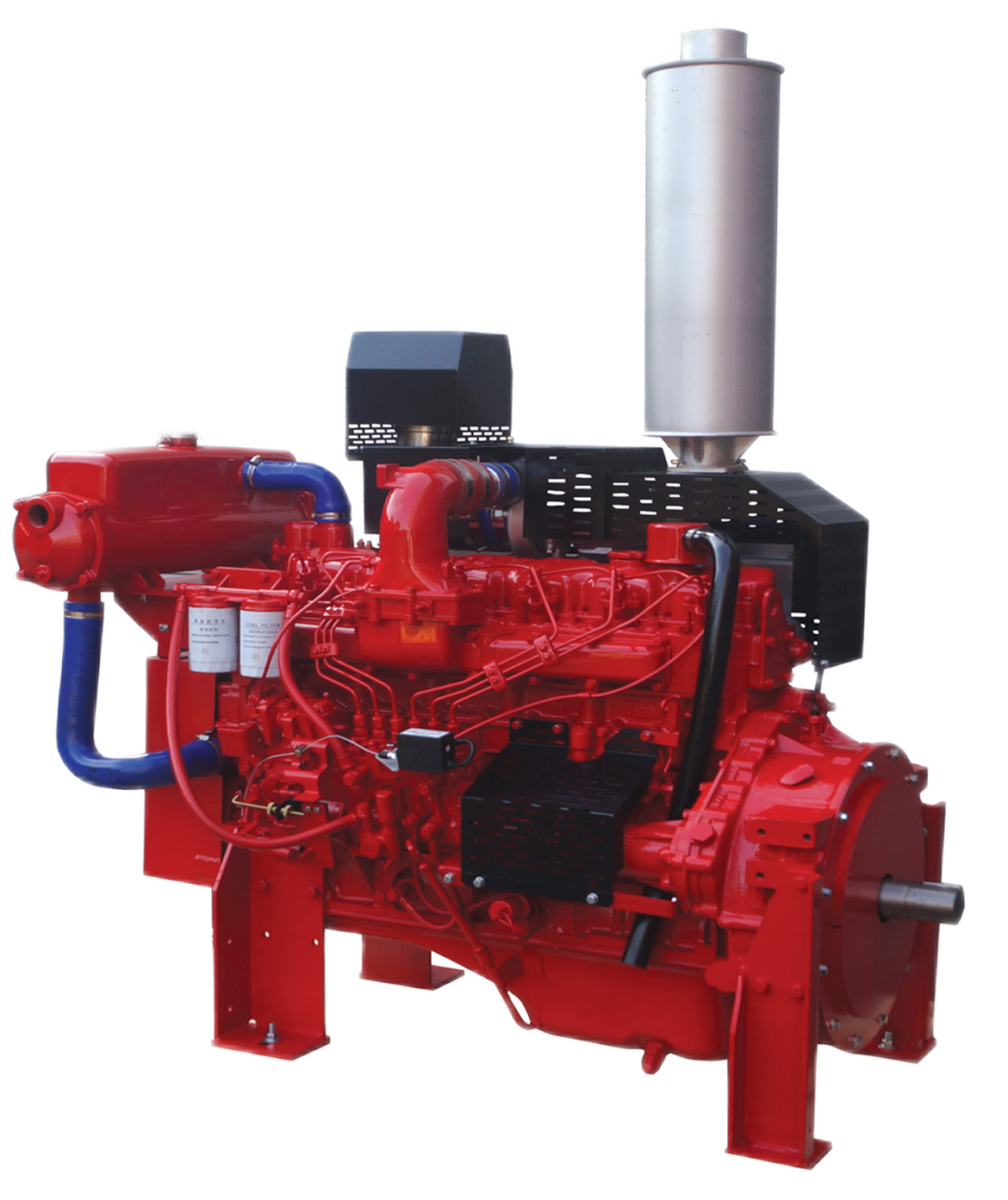

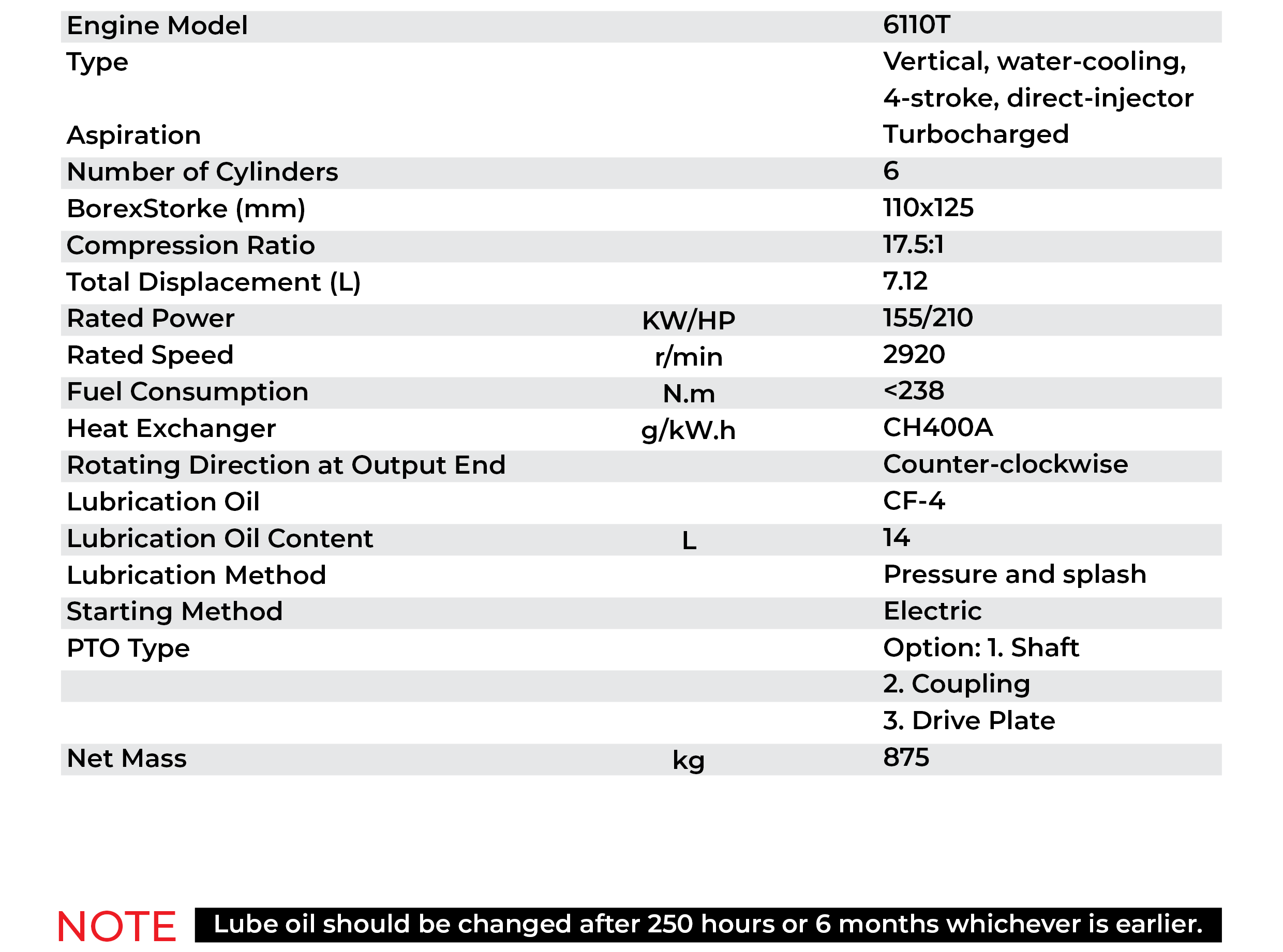

| 6110T | 6 | Turbocharged | 7.12 L | 155 / 210 | 2920 r/min | 875 kg | PNG |

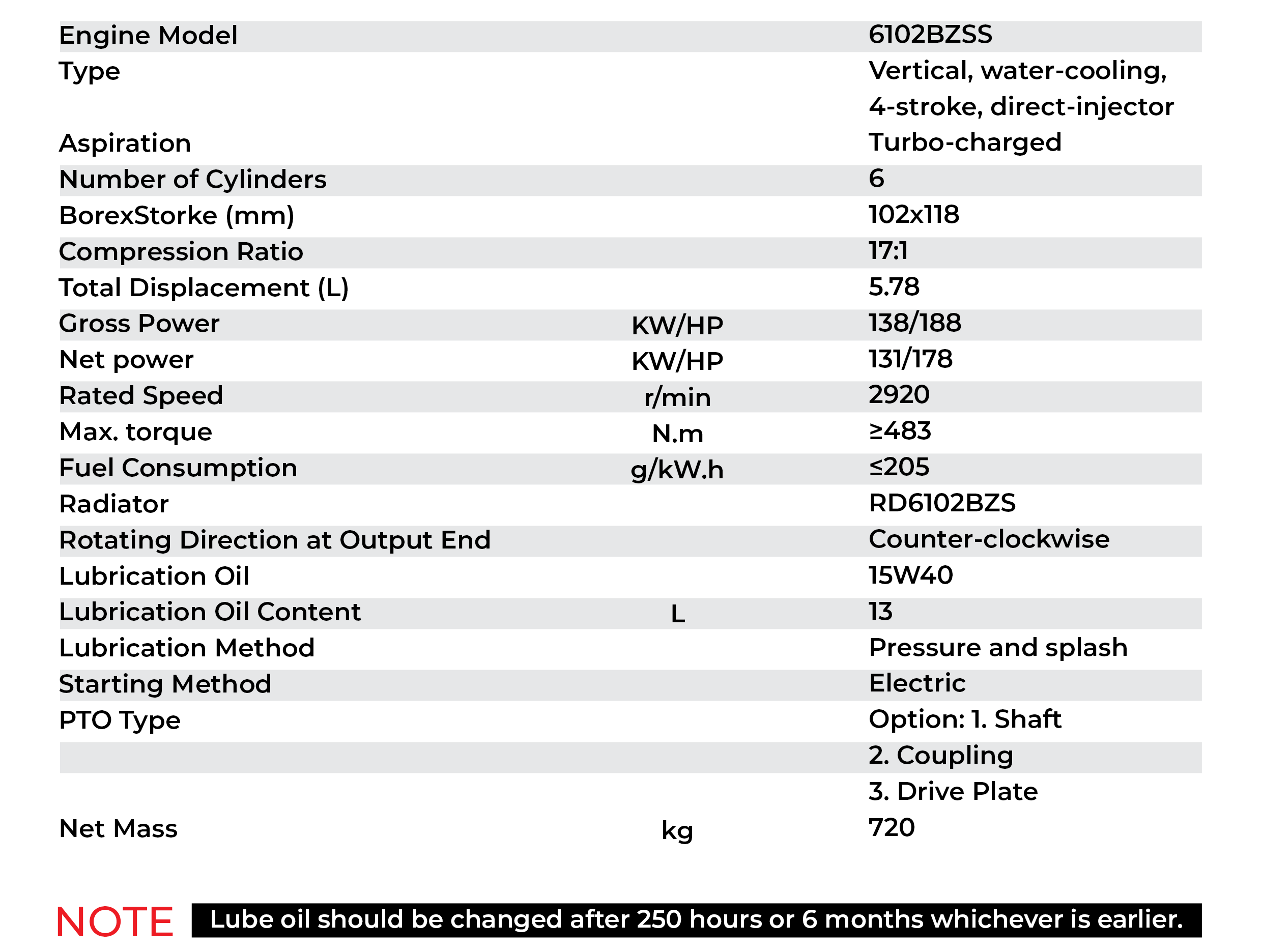

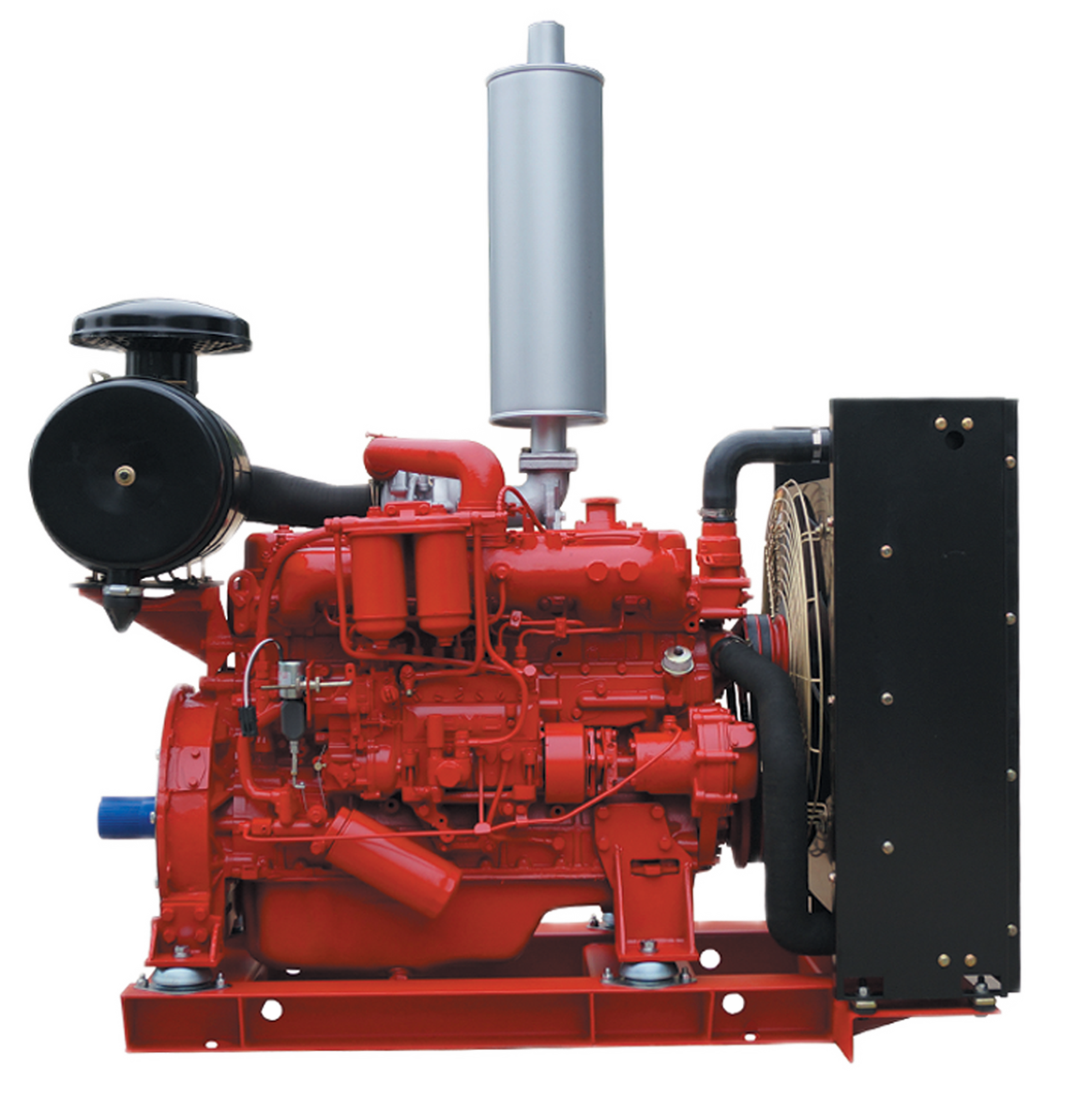

| 6102BZSS | 6 | Turbocharged | 5.78 L | 138 / 188 | 2920 r/min | 720 kg | PNG |

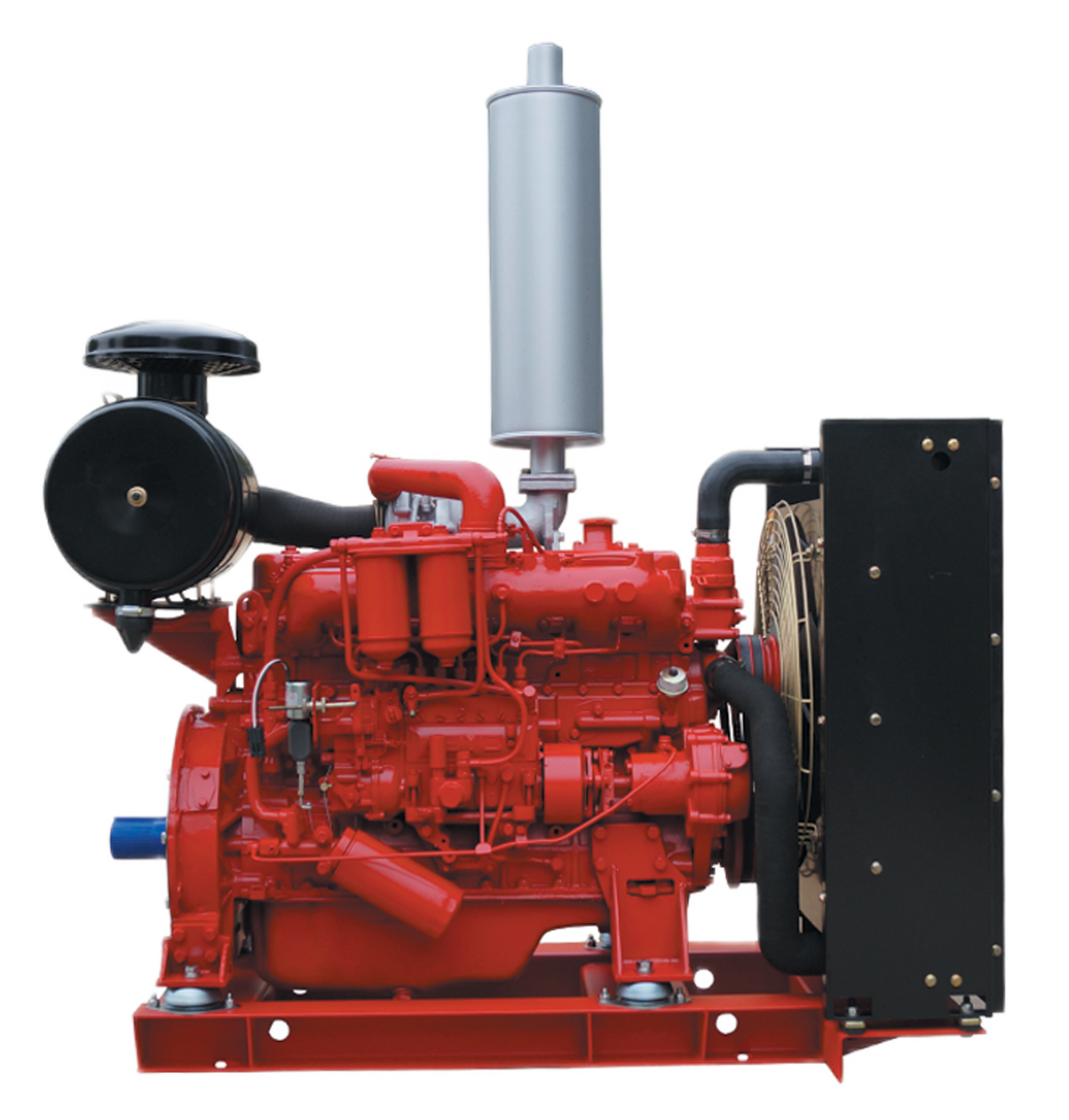

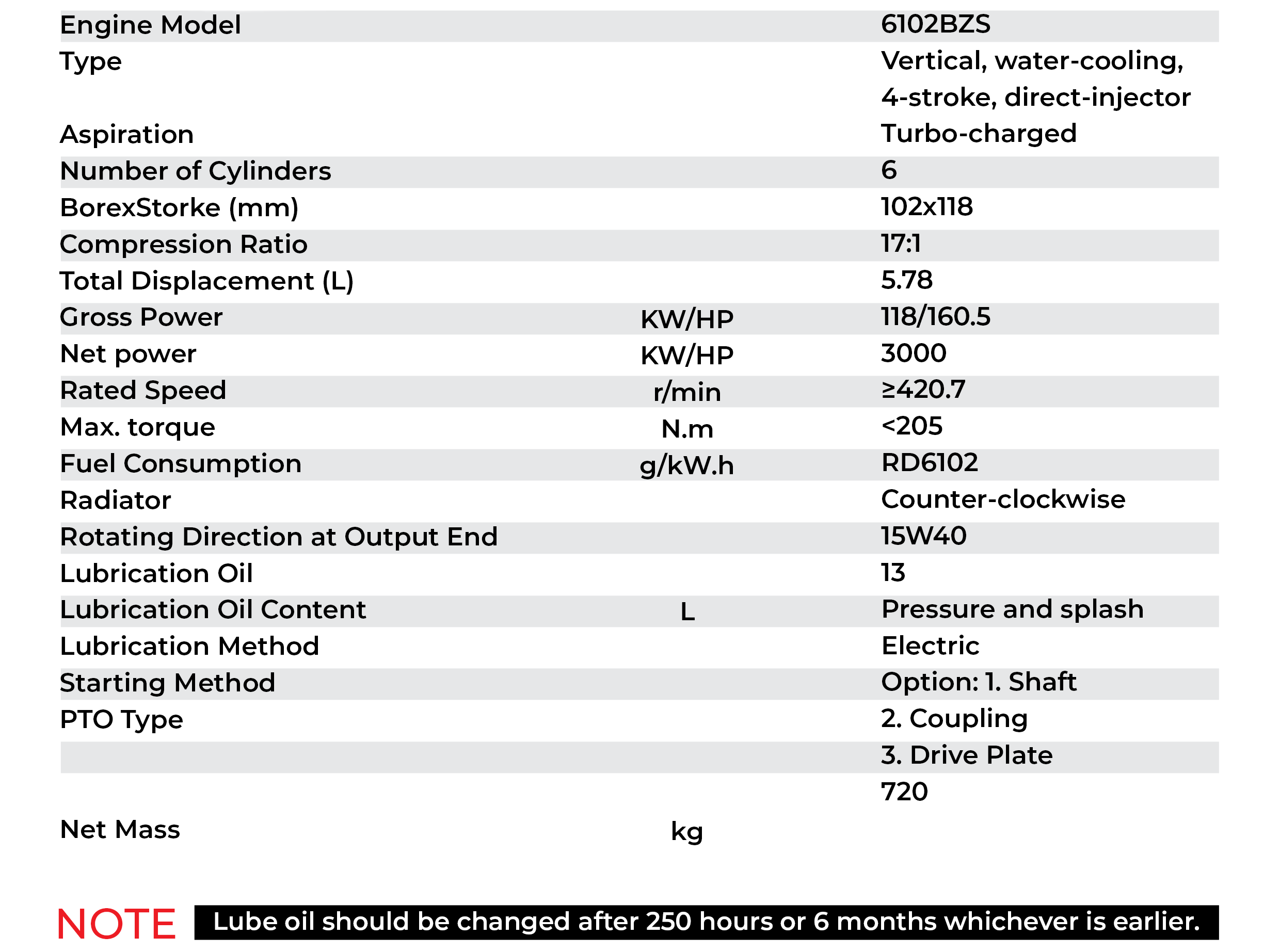

| 6102BZS | 6 | Turbocharged | 5.78 L | 118 / 160.5 | 3000 r/min | 720 kg | PNG |

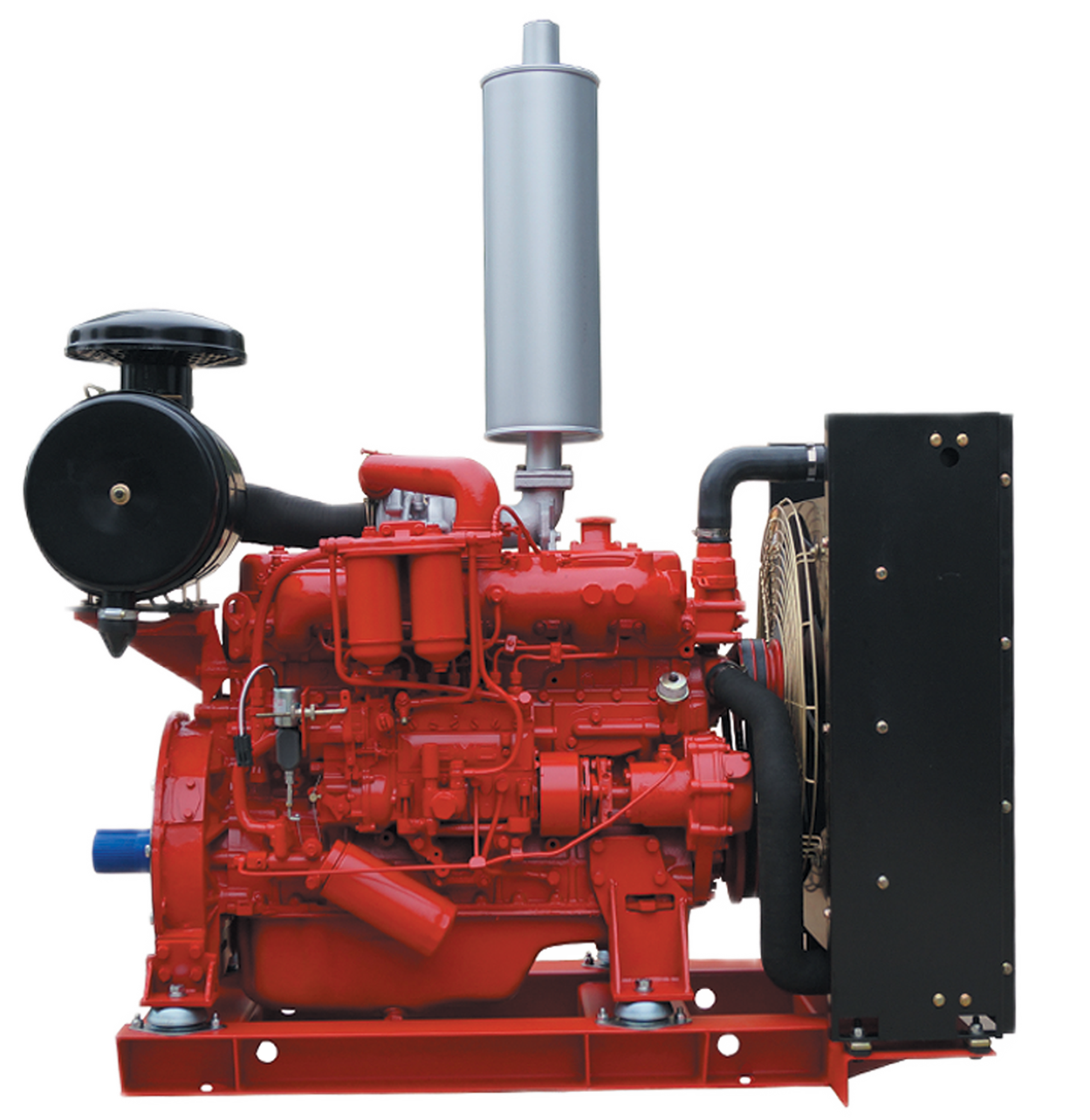

| 6102BZ | 6 | Turbocharged | 5.78 L | 95 / 130 | 2920 r/min | 650 kg | PNG |

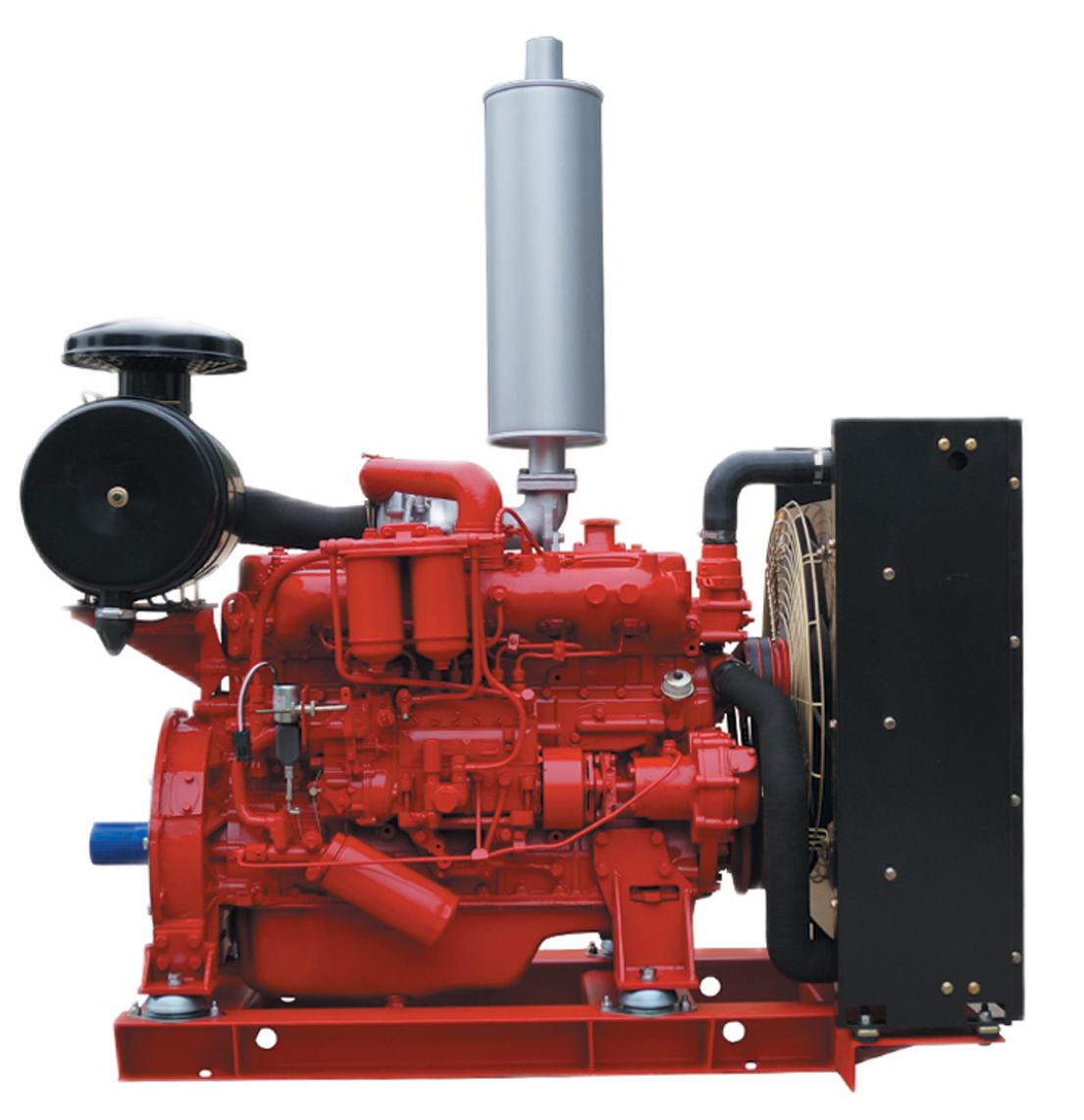

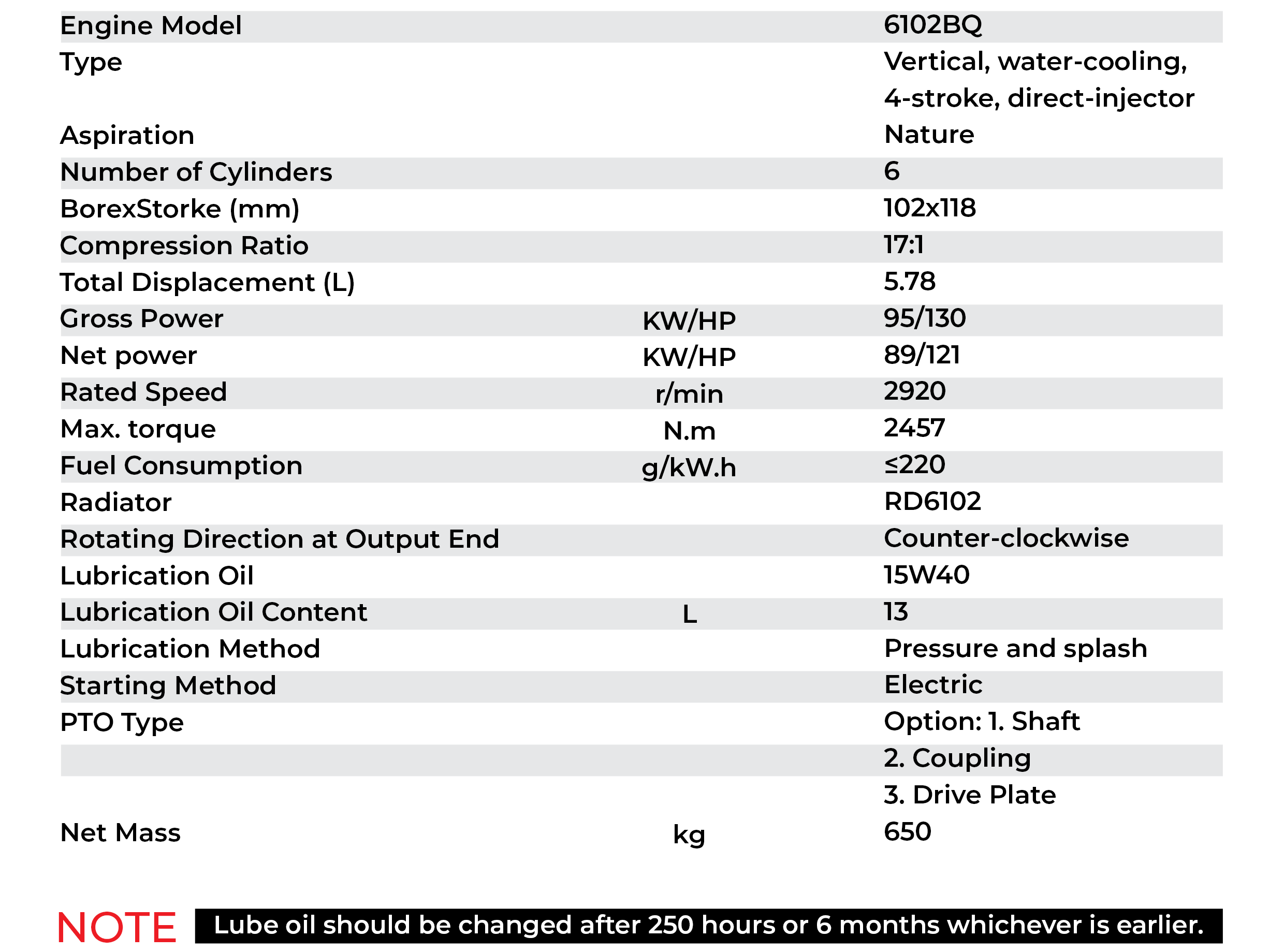

| 6102BQ | 6 | Naturally Aspirated | 5.78 L | 95 / 130 | 2920 r/min | 650 kg | PNG |

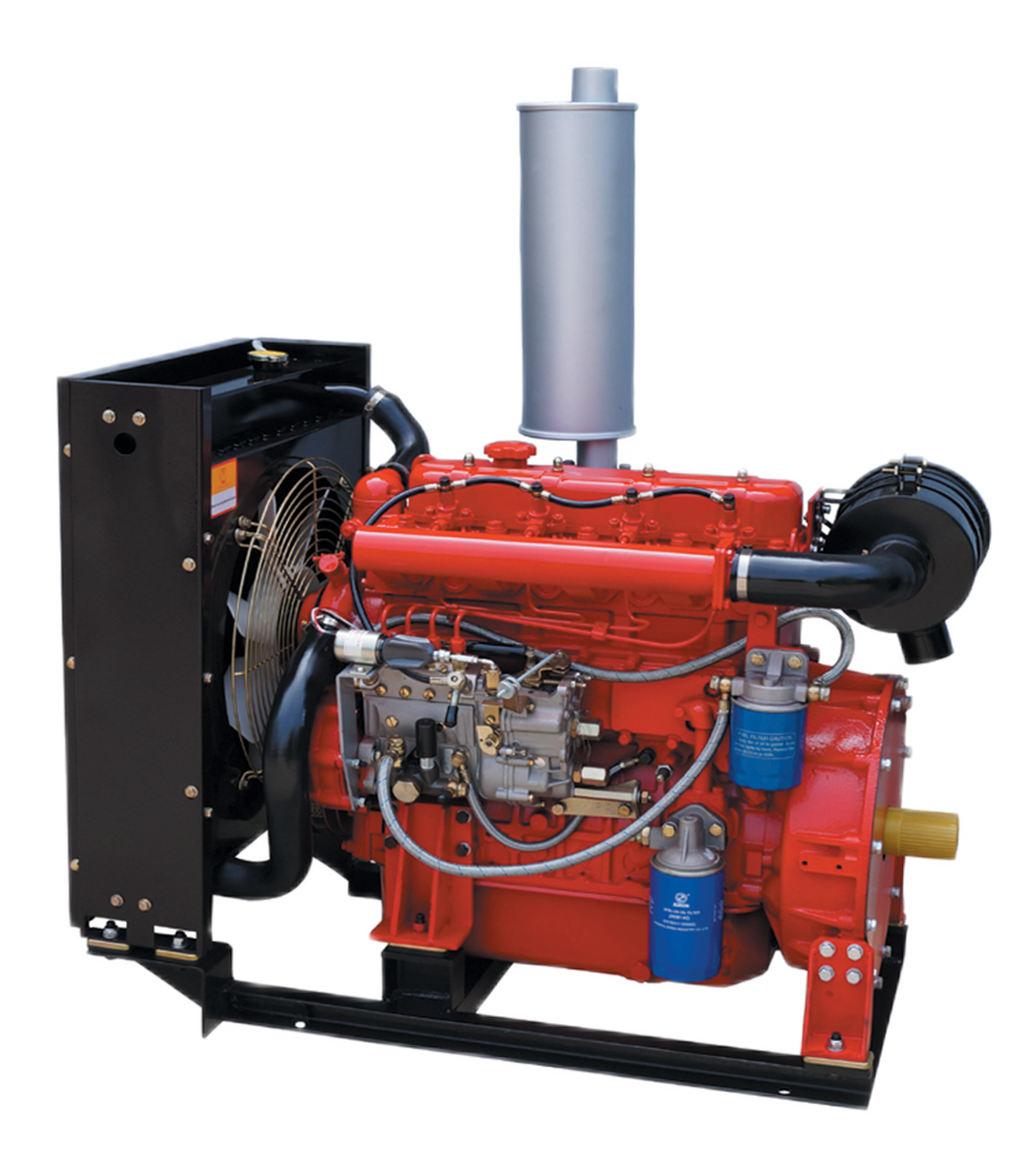

| 4108 | 4 | Naturally Aspirated | 4.322 L | 76 / 105 | 3000 r/min | 480 kg | PNG |

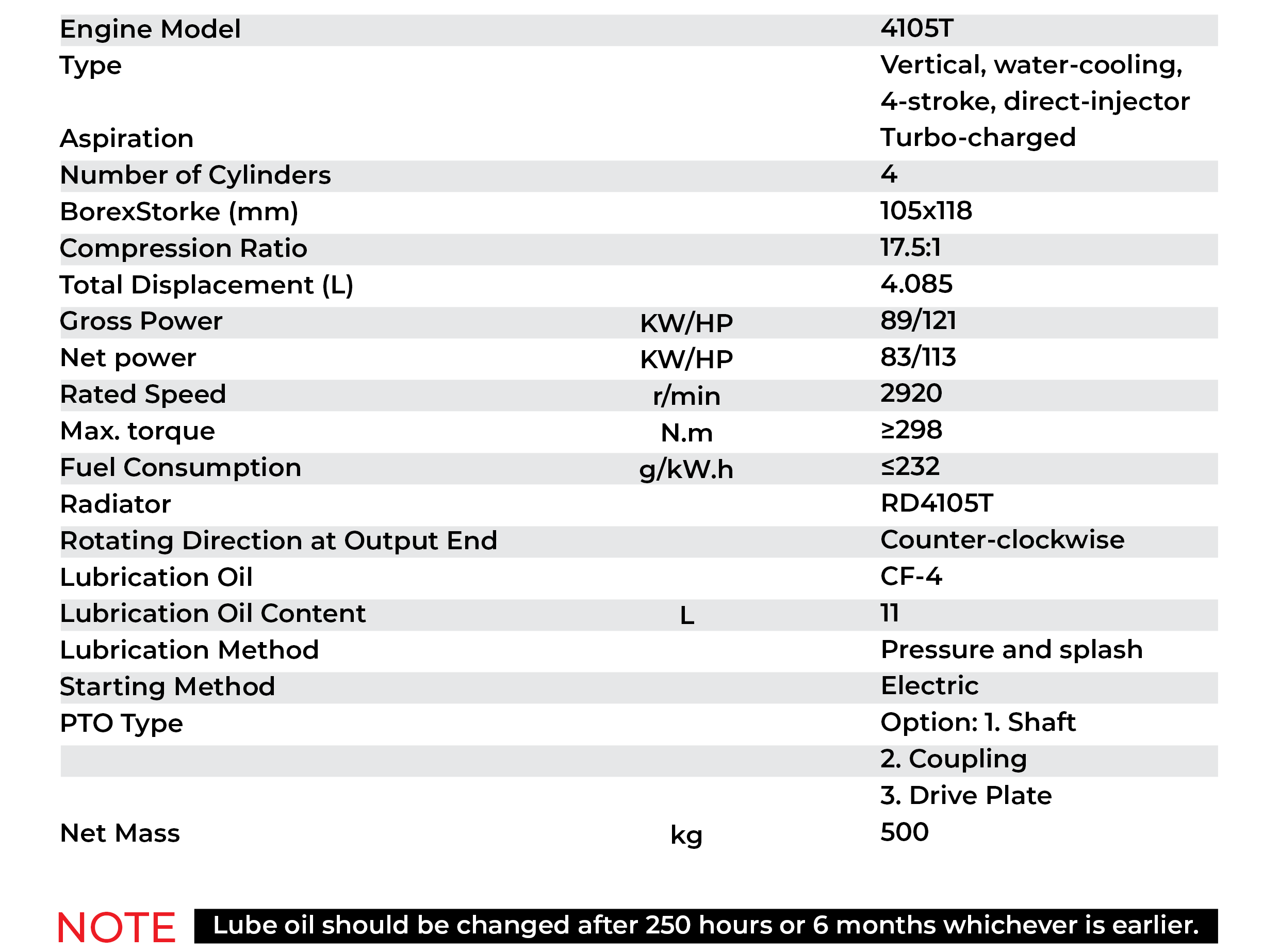

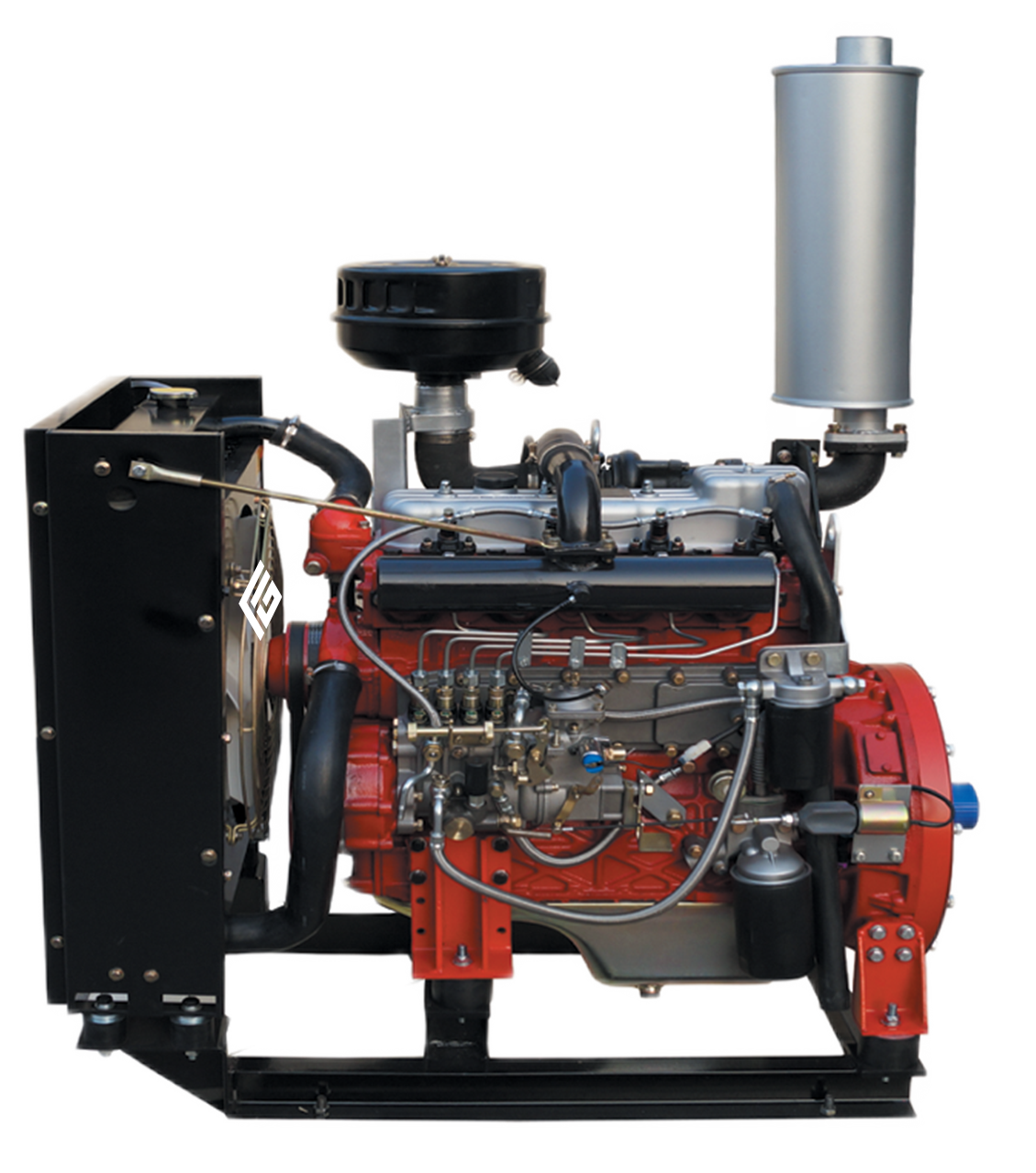

| 4105T | 4 | Turbocharged | 4.085 L | 89 / 121 | 2920 r/min | 500 kg | PNG |

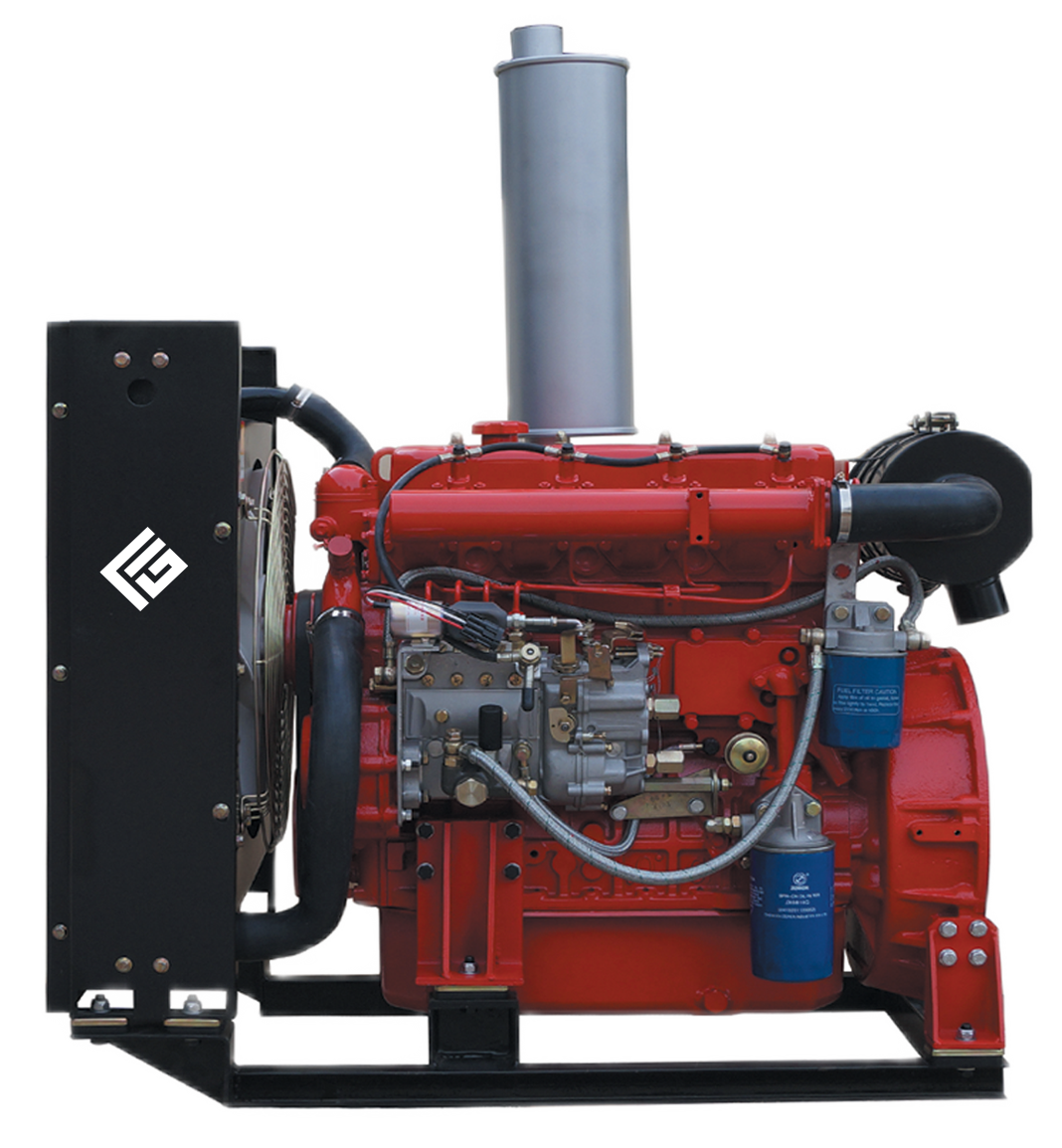

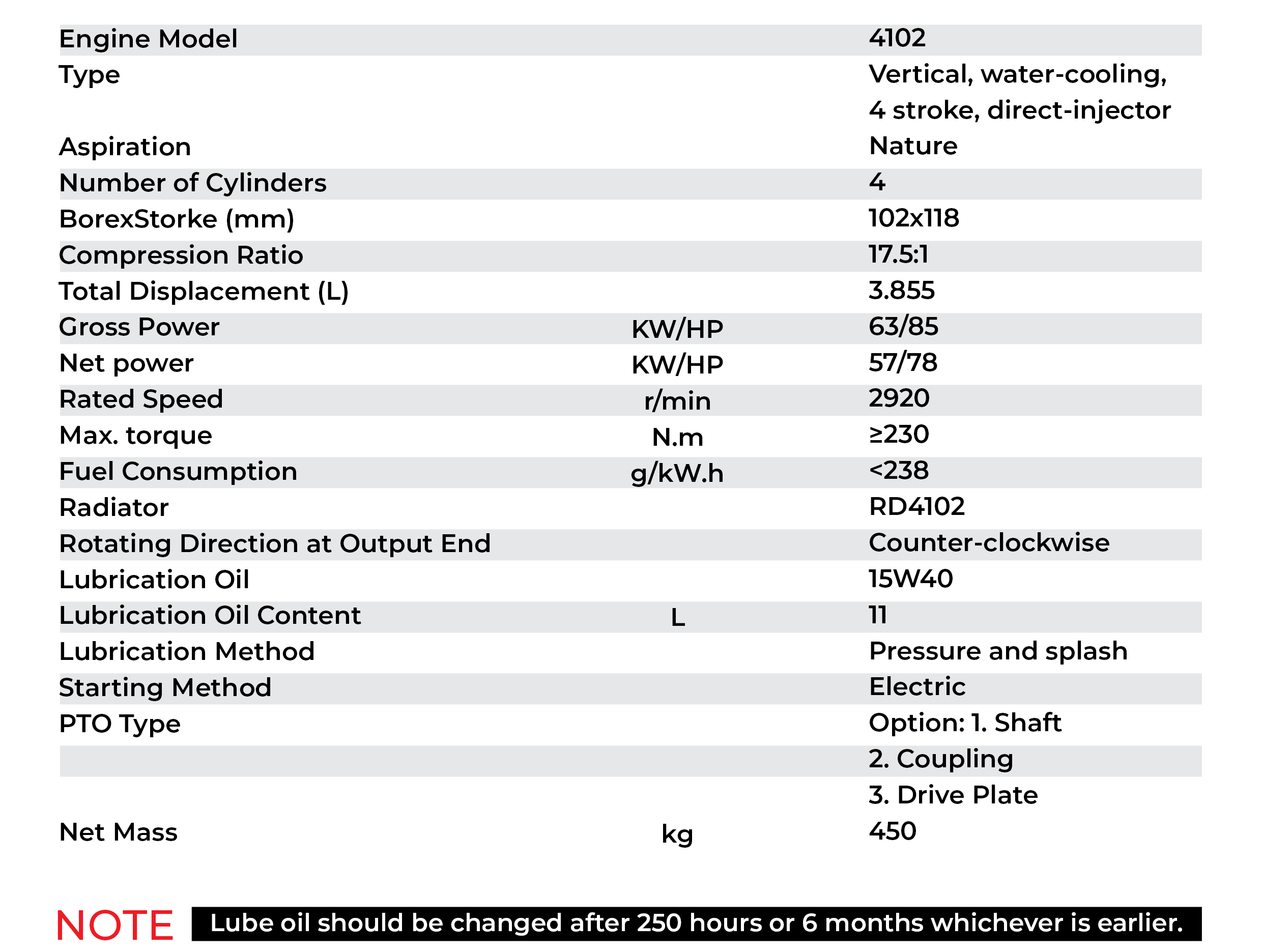

| 4102 | 4 | Naturally Aspirated | 3.855 L | 63 / 85 | 2920 r/min | 450 kg | PNG |

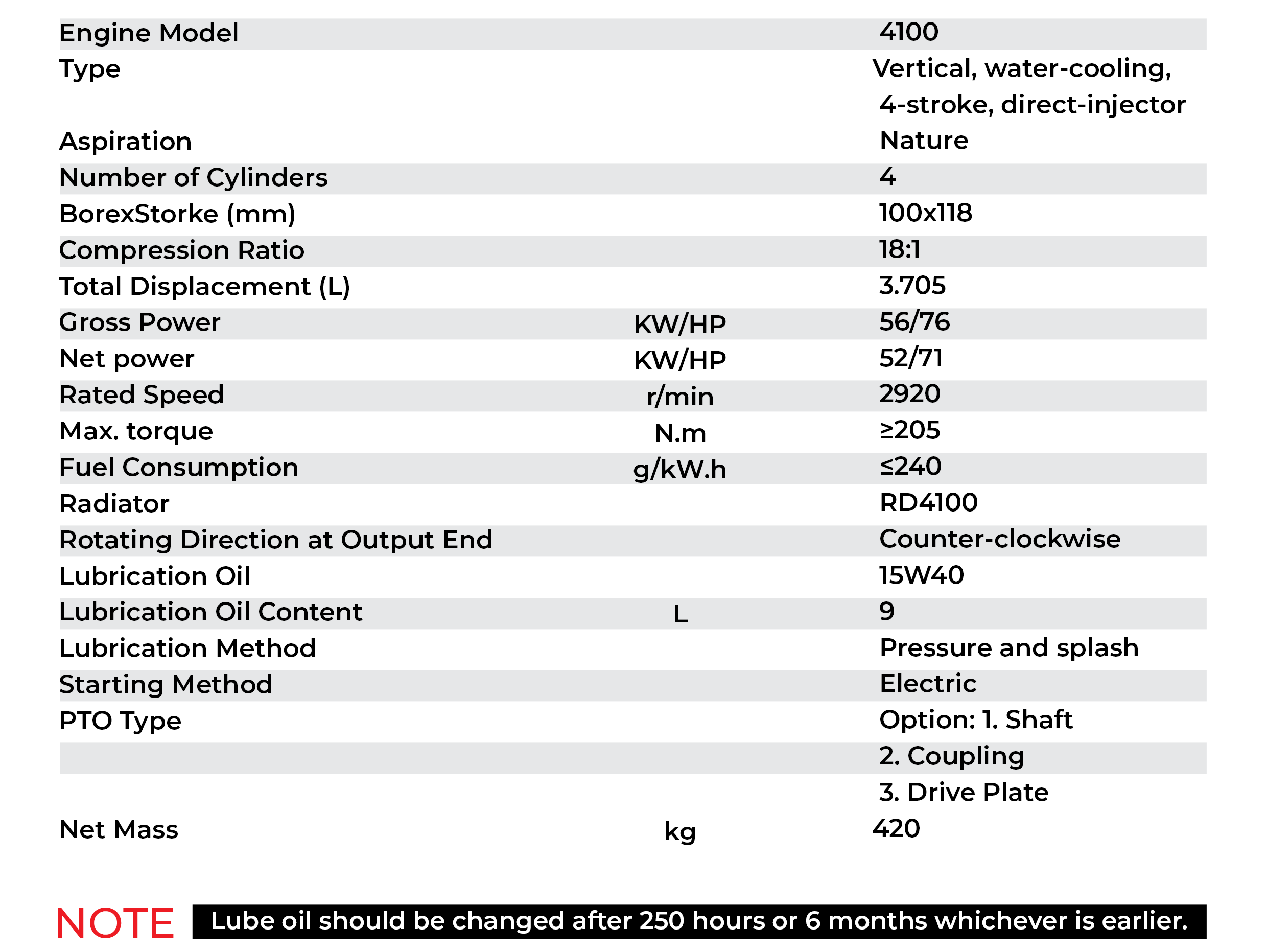

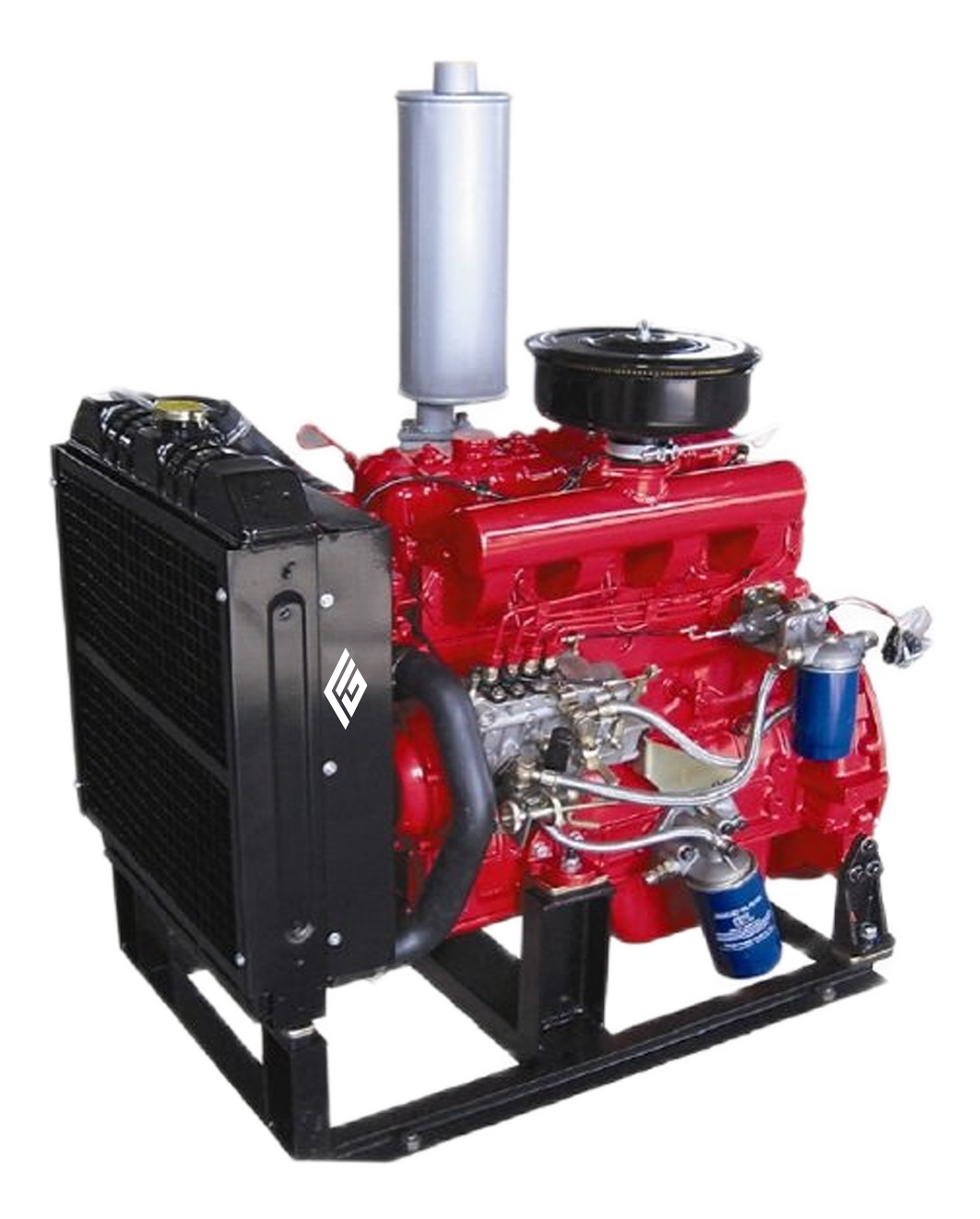

| 4100 | 4 | Naturally Aspirated | 3.705 L | 56 / 76 | 2920 r/min | 420 kg | PNG |

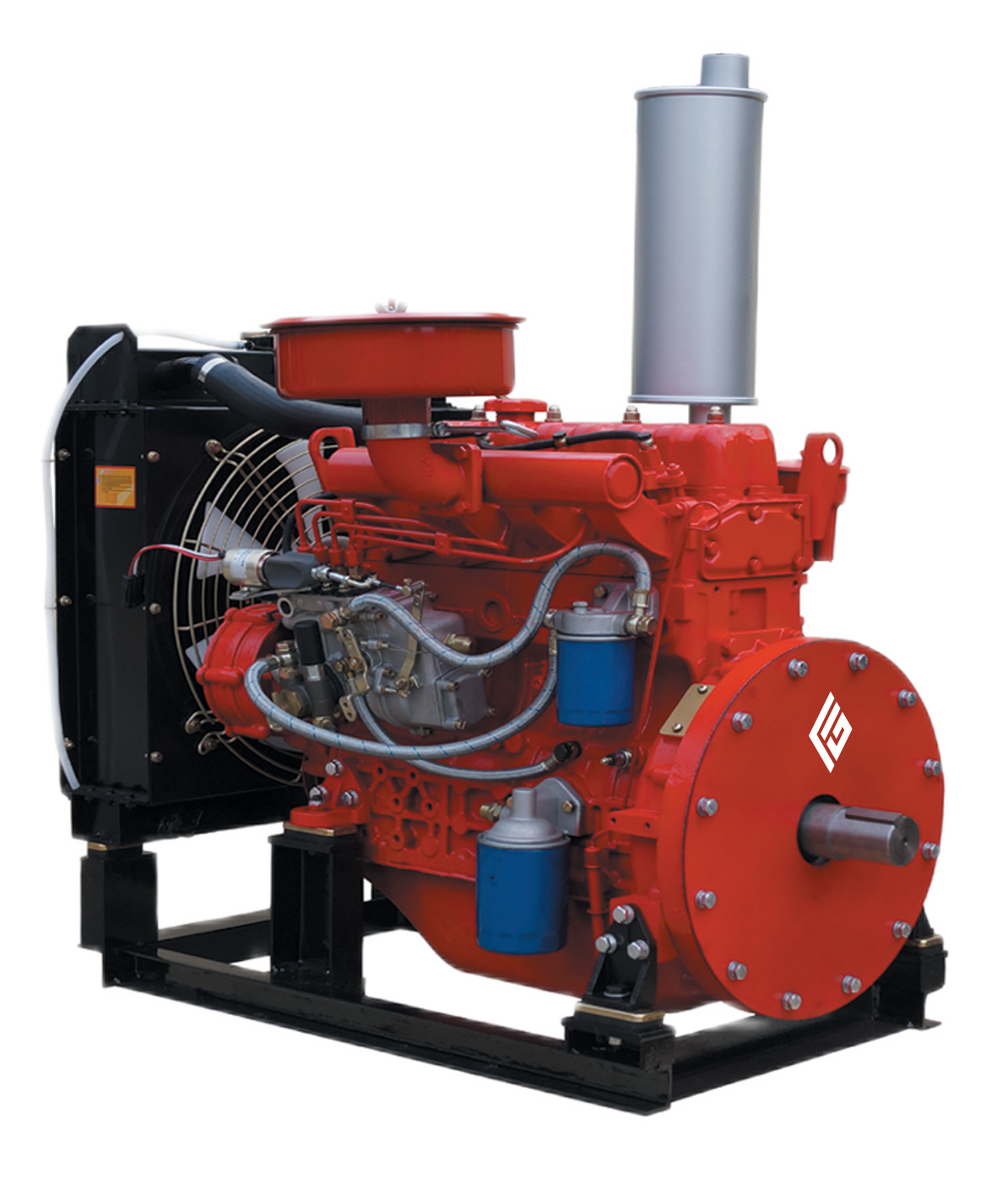

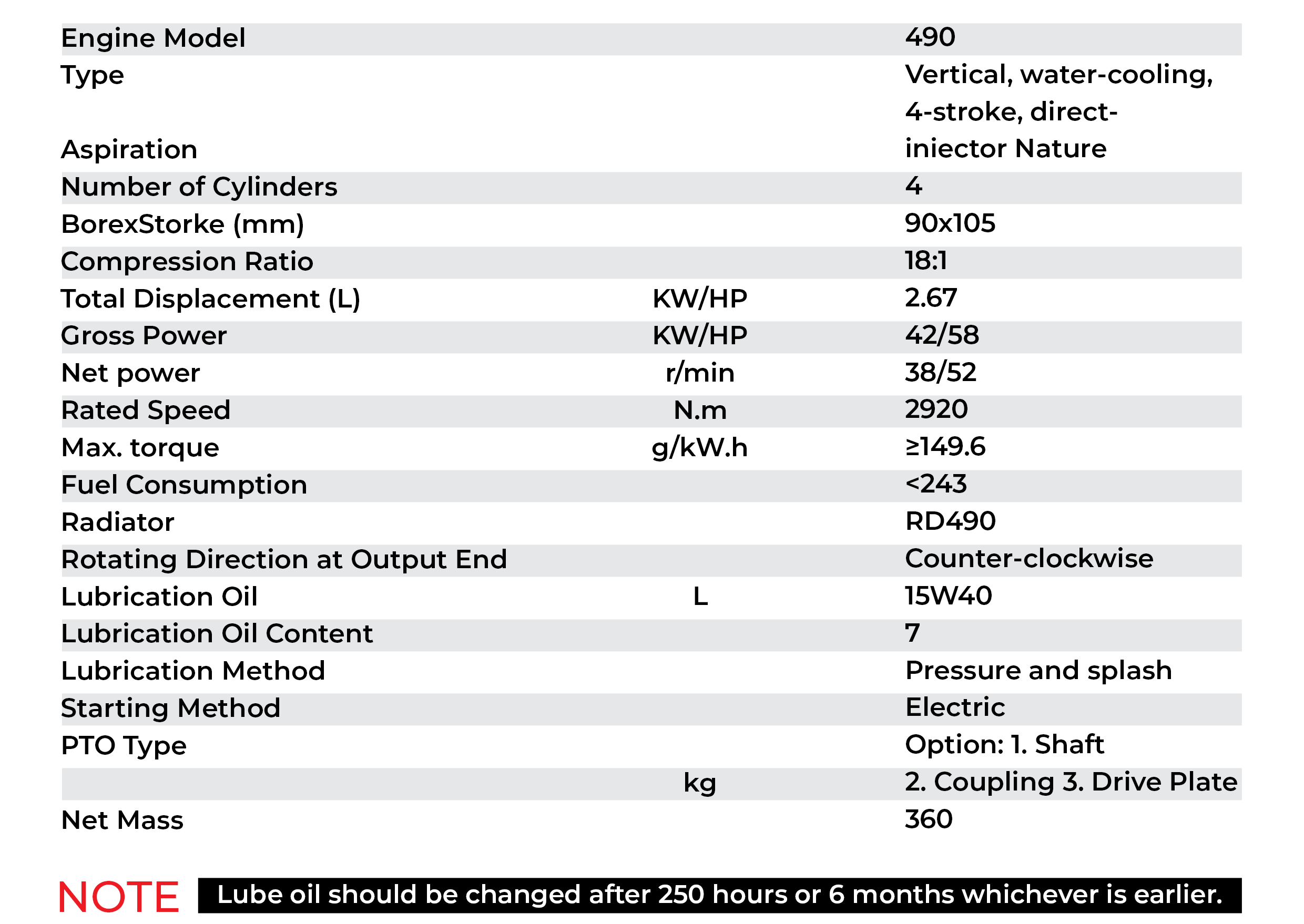

| 490 | 4 | Naturally Aspirated | 2.67 L | 42 / 58 | 2920 r/min | 360 kg | PNG |

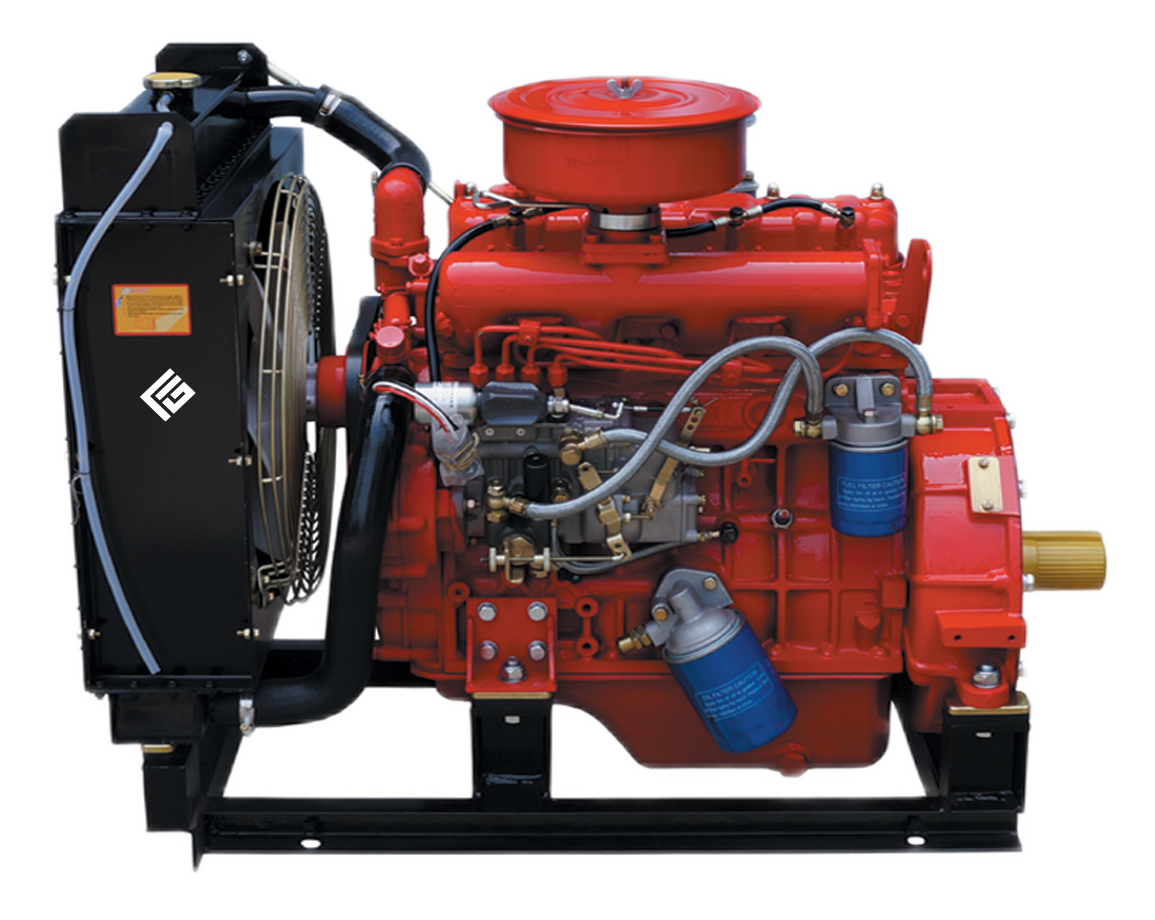

| 485 | 4 | Naturally Aspirated | 2.156 L | 33.5 / 45 | 2920 r/min | 320 kg | PNG |

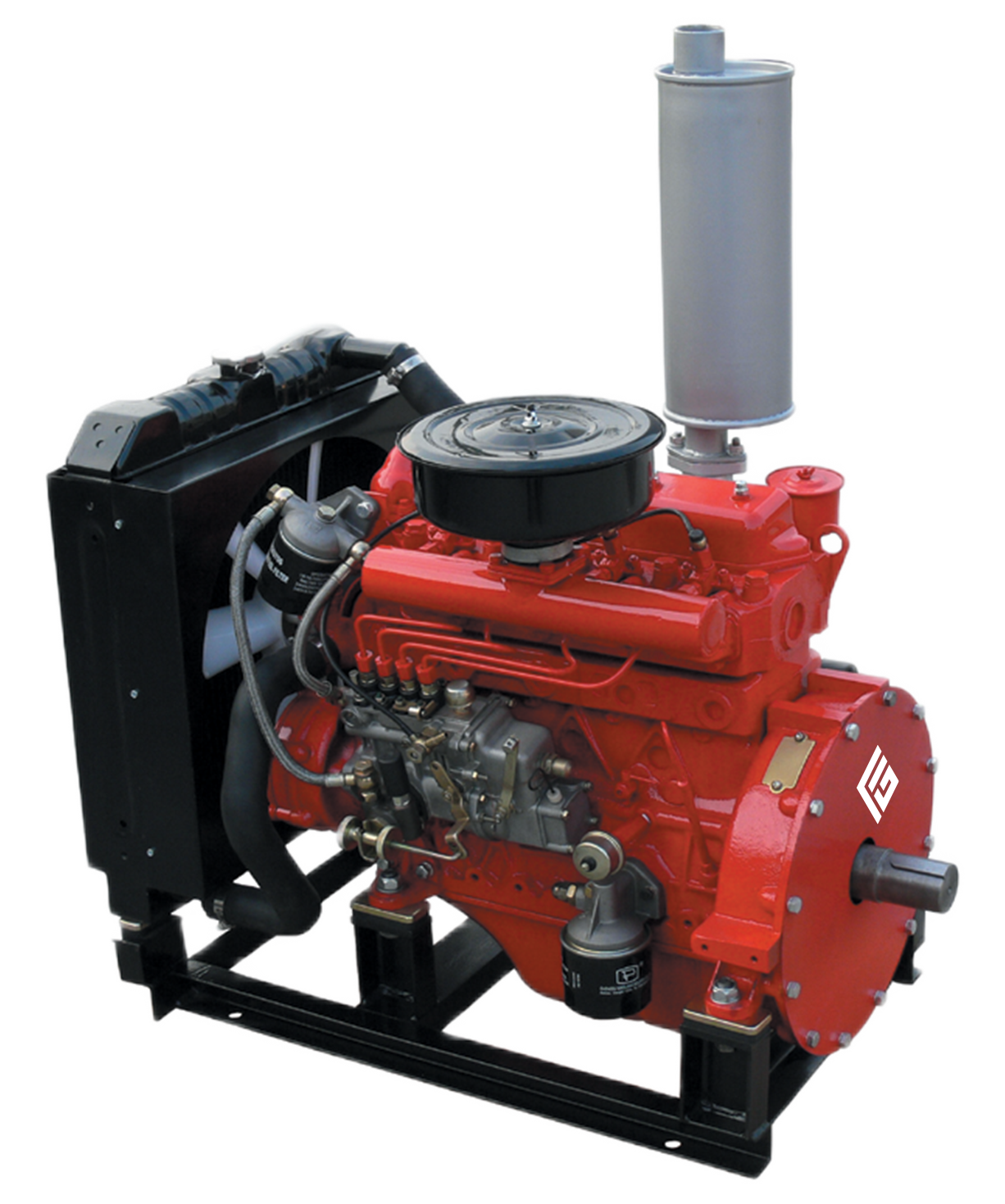

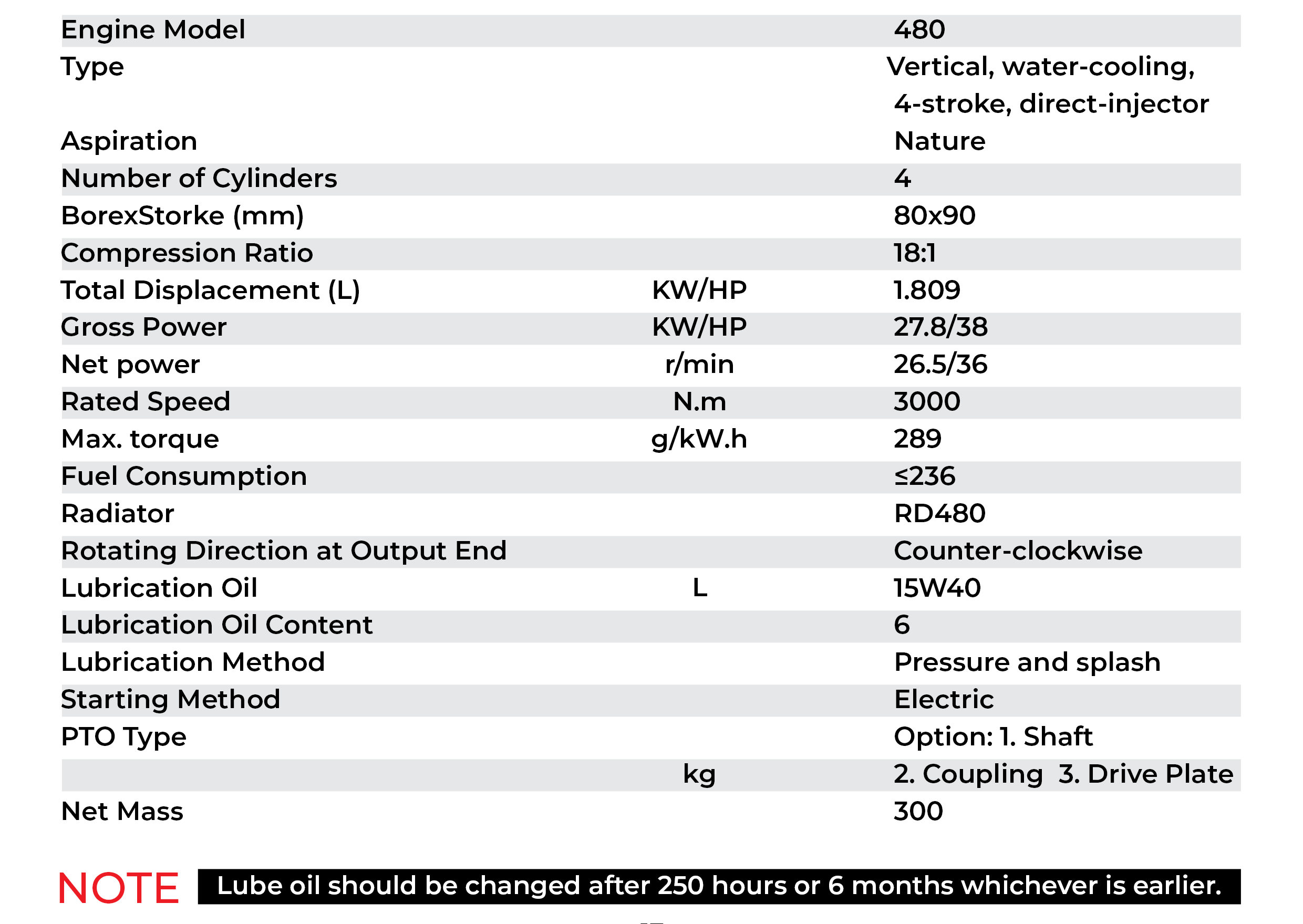

| 480 | 4 | Naturally Aspirated | 1.809 L | 27.8 / 38 | 3000 r/min | 300 kg | PNG |

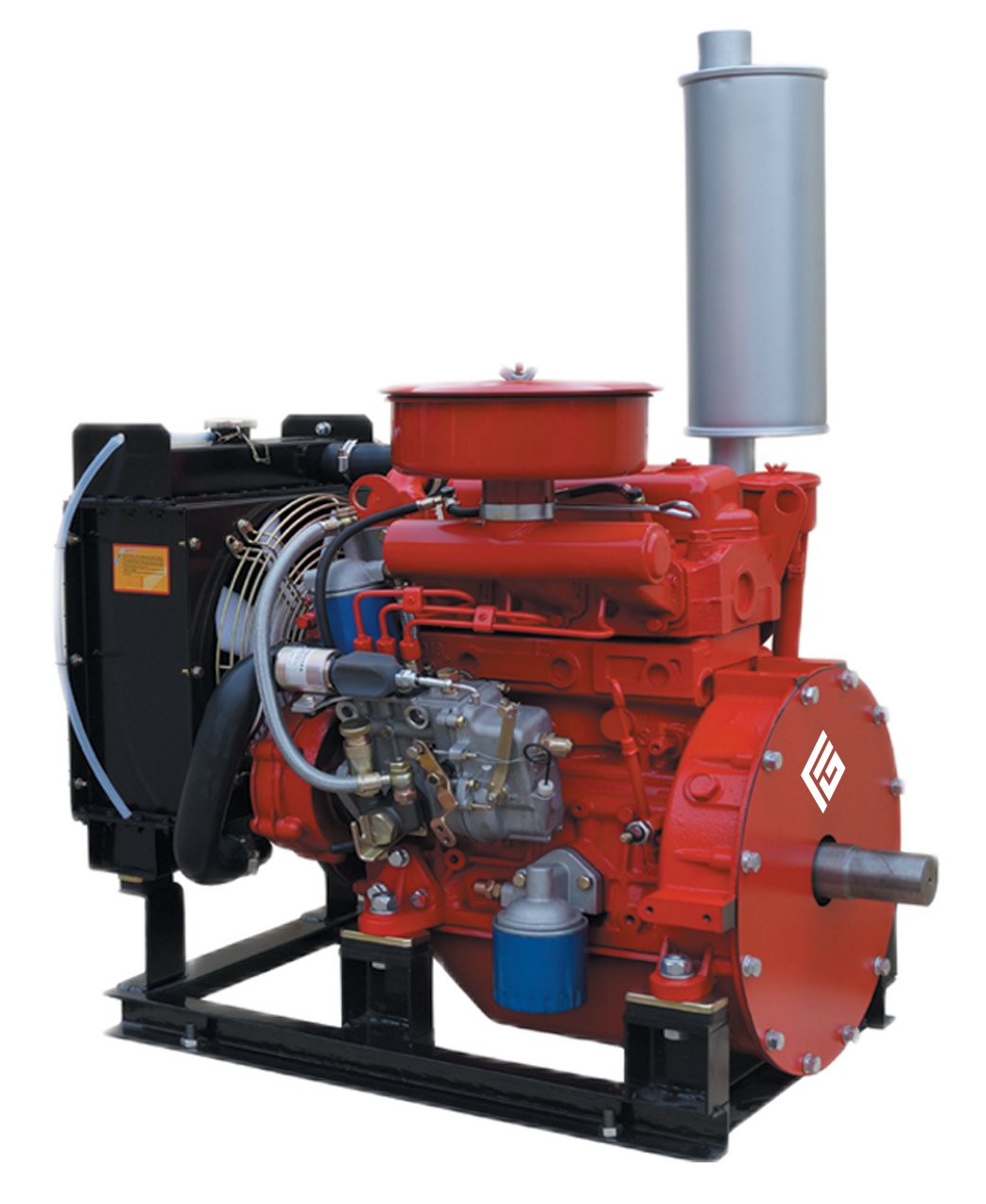

| 385 | 3 | Naturally Aspirated | 1.532 L | 23 / 31 | 3000 r/min | 260 kg | PNG |

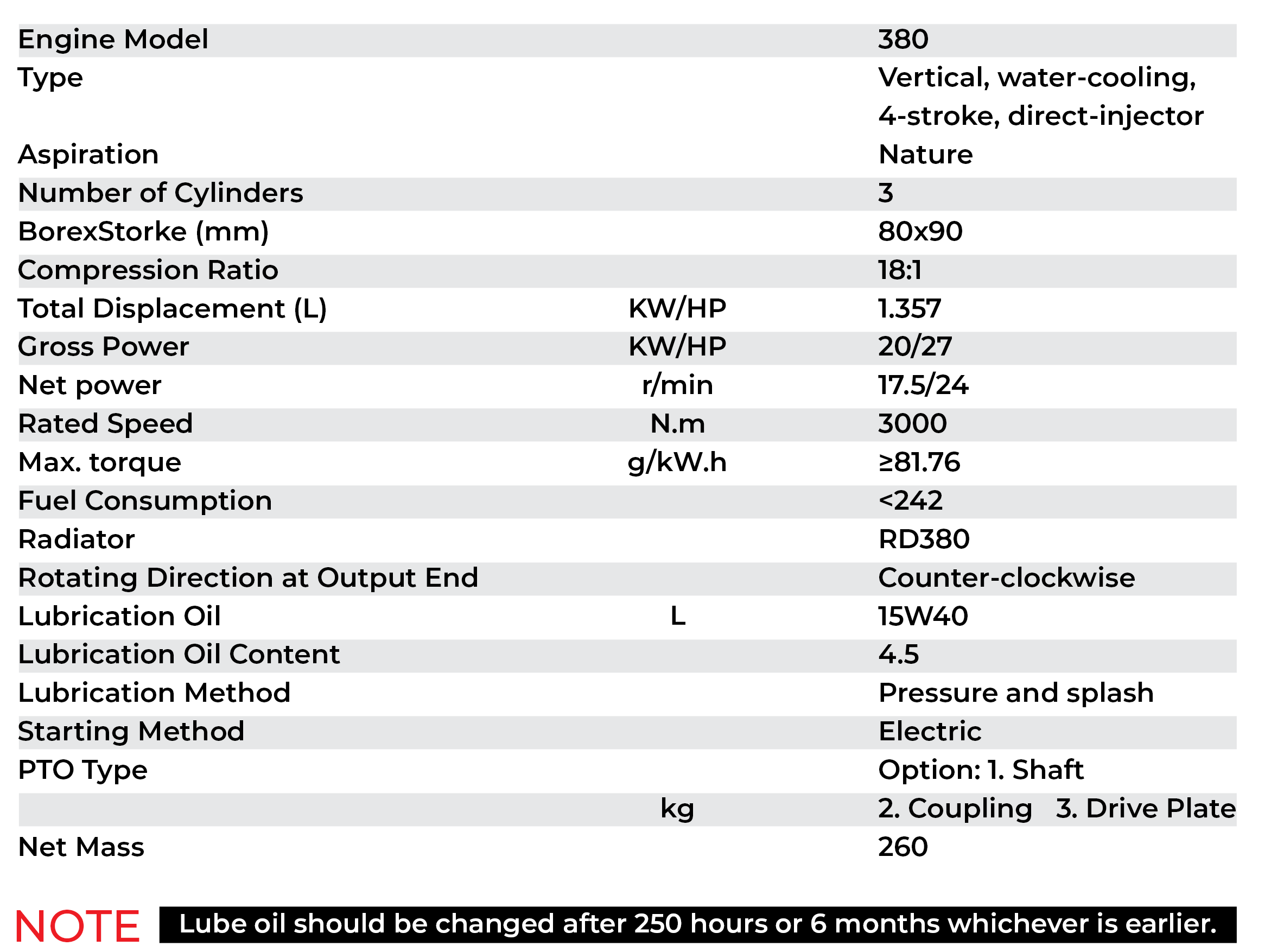

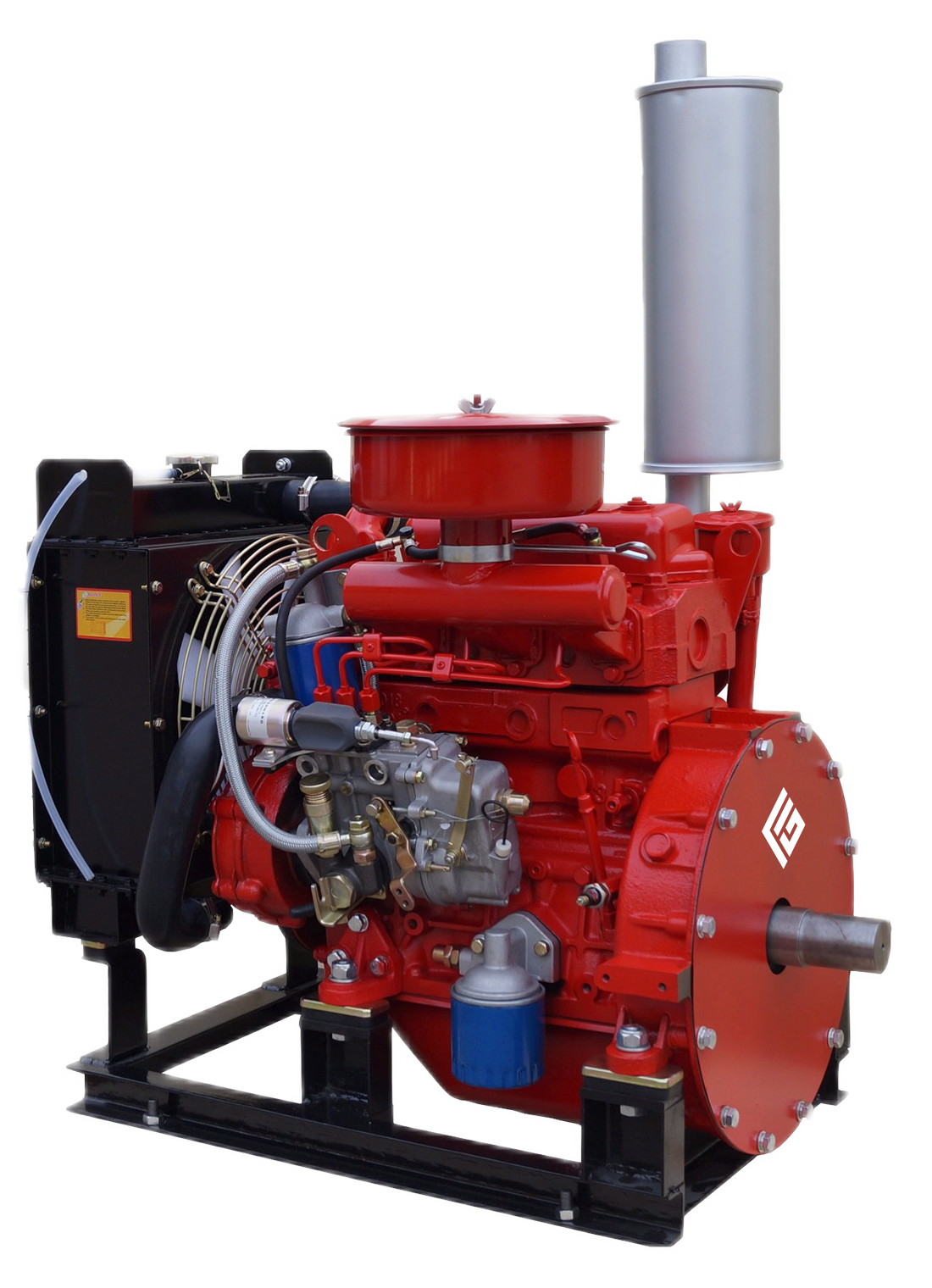

| 380 | 3 | Naturally Aspirated | 1.357 L | 20 / 27 | 3000 r/min | 260 kg | PNG |

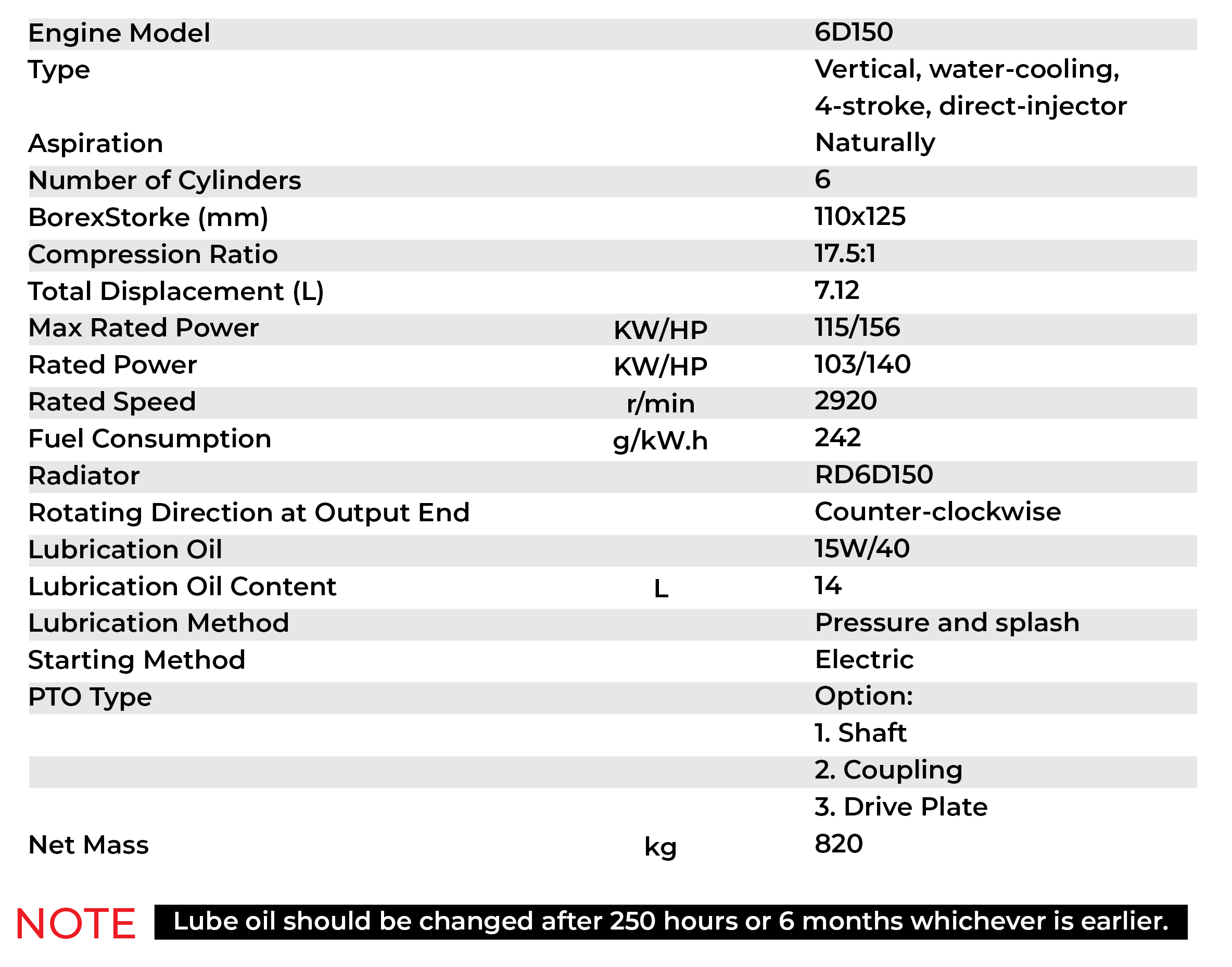

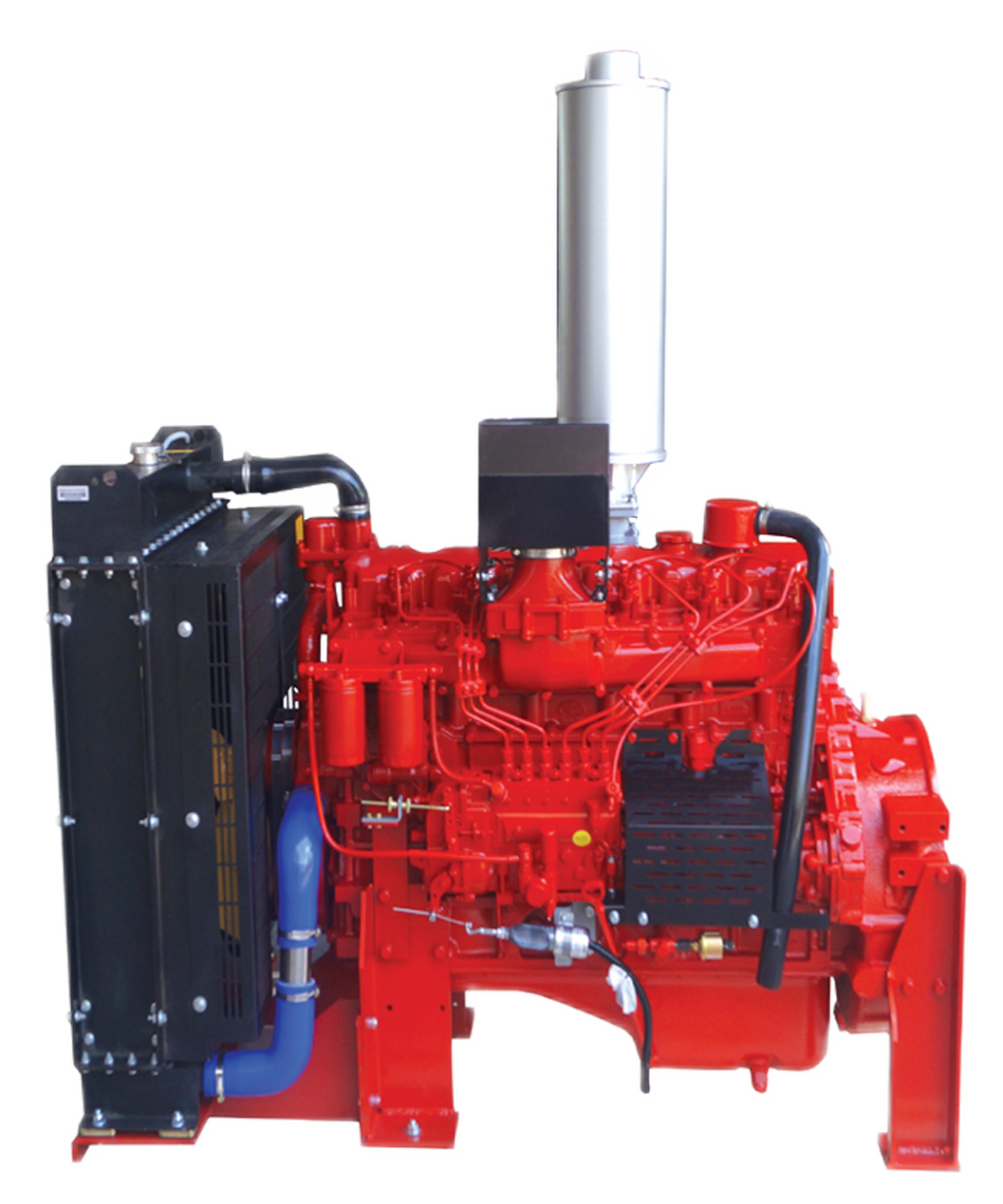

| 6D150 | 6 | Naturally Aspirated | 7.12 L | 103 / 140 | 2920 r/min | 820 kg | PNG |
Fire pump spare parts support pump operation, monitoring, pressure control, electrical control, mechanical connection, engine cooling, and maintenance requirements inside fire pump rooms.
Products used in fire pump rooms for replacement, maintenance, and system support.
Components can be checked based on project quantity, required model, and installation requirements.
Main products include datasheet links where available, while other accessories can be requested from the sales team.
Send the required product name, quantity, project location, and any available photos or specifications. Falcon Power can help you check the suitable spare part for your fire pump system.
