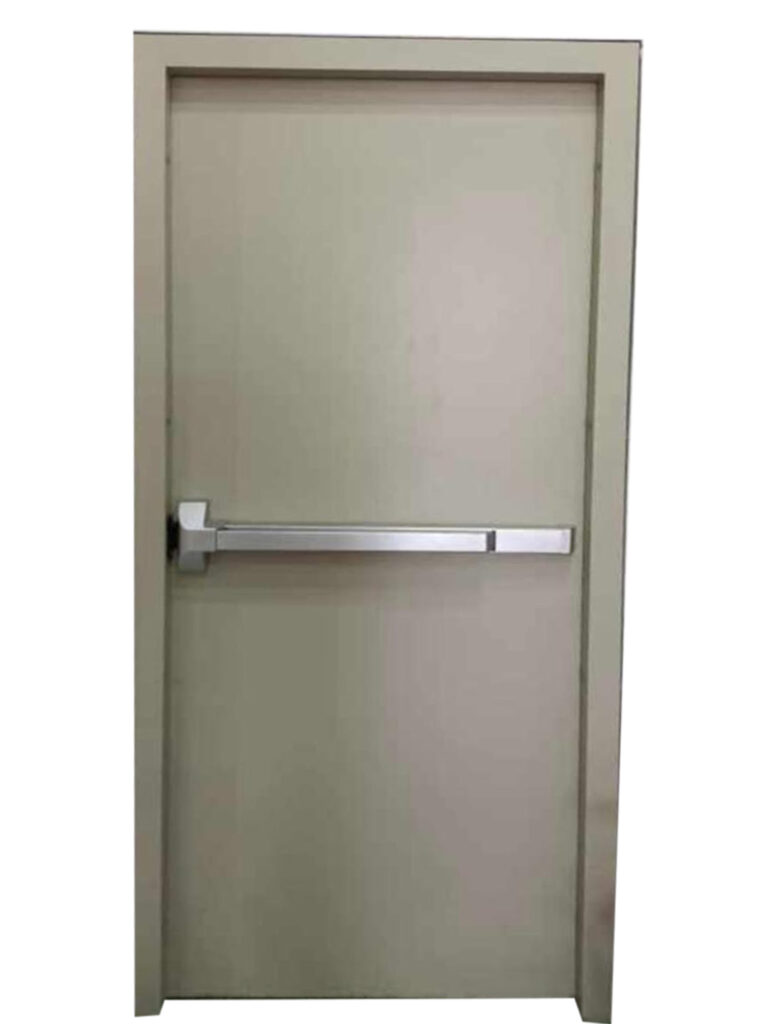

Fire-Rated Exit Door with Panic Bar

Key Features:

This type of fire-rated door is primarily designed for emergency exits in commercial and industrial buildings. It’s equipped with a panic bar, which allows for quick and easy egress in case of a fire or emergency. The panic bar mechanism ensures that the door can be opened swiftly without needing a key or complicated unlocking process. This is critical in emergency situations where every second counts.
- Fire Resistance: Typically rated to withstand fire for 60 to 120 minutes, depending on the door’s certification. The fire rating ensures the door helps prevent the spread of fire and smoke, allowing for safe evacuation routes.
- Material: Made of steel or heavy-duty fire-resistant materials.
- Use Case: Commonly installed in shopping malls, hospitals, schools, warehouses, and public buildings. The door ensures fire containment while providing a secure and reliable emergency exit route.
- Compliance: Meets international fire safety codes and is often mandated in buildings to ensure public safety.

Fire-Rated Metal Door with Frame

Key Features:

The door is slightly ajar, indicating a focus on its construction and how it fits into its frame. Fire-rated metal doors are used in various applications where fire containment and compartmentalization are required.
- Fire Resistance: Typically available with ratings from 60 minutes up to 180 minutes, depending on the specific model and certification. These doors help prevent the fire from spreading between different compartments of a building.
- Material: Constructed using durable metal, usually steel, that is coated with fire-resistant materials. The heavy-duty metal ensures both fire resistance and strength against impact or forced entry.
- Use Case: This type of door is commonly installed in industrial facilities, staircases, mechanical rooms, and service entrances. It ensures that fire cannot pass from one area to another, especially in areas with valuable equipment or in high-traffic zones.
- Features: The door is typically flush and may include options like reinforced hinges, automatic door closers, and seals to keep smoke and fire contained.

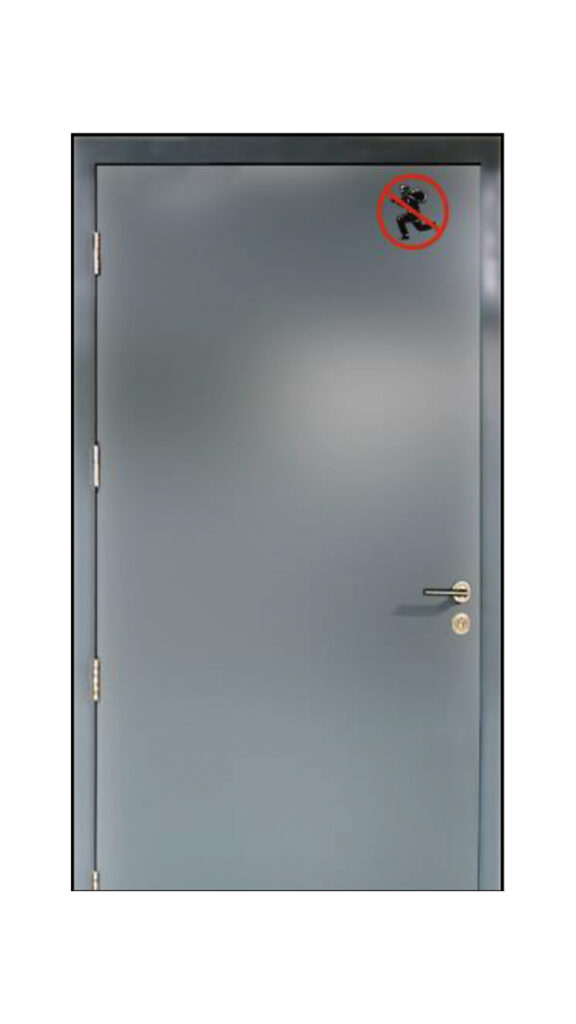

Flush Fire-Rated Door

Key Features:

The flush fire-rated door shown here is a minimalistic, flat-panel fire door with a simple design. It doesn’t have a panic bar but includes a standard handle. These types of doors are widely used in interior spaces like corridors, stairwells, or rooms that require fire containment but don’t need emergency exit functionality.
- Fire Resistance: Ranges between 30 and 120 minutes depending on the installation requirements. Its flush design provides a seamless, smooth look, while still maintaining a high level of fire resistance.
- Material: Often constructed with a steel core or other fire-resistant materials, finished with a smooth, flat panel exterior.
- Use Case: These doors are commonly installed in offices, apartment buildings, stairwells, and other internal fire-rated enclosures. They ensure that in case of a fire, flames and smoke are restricted to one part of the building, preventing them from spreading to other areas.
- Compliance: This type of door complies with local fire safety standards, ensuring both aesthetic and functional fire protection in internal spaces.

Key Features of All Doors:

Fire Seals and Gaskets: All fire-rated doors are typically equipped with intumescent strips or fire seals around the frame. These expand in response to heat, sealing the door tightly and preventing the passage of smoke and flames.
Certification: Each of these doors should be certified by relevant safety authorities, such as UL, FM, or equivalent, which ensures they meet rigorous fire safety standards

By installing these fire-rated doors, a building is much better equipped to contain fires, protect occupants, and reduce the damage caused by fire and smoke. Each of these doors plays a crucial role in building safety, particularly in ensuring safe evacuation routes and limiting the spread of fire.
